Home>0.9mm Splice Mechanicals

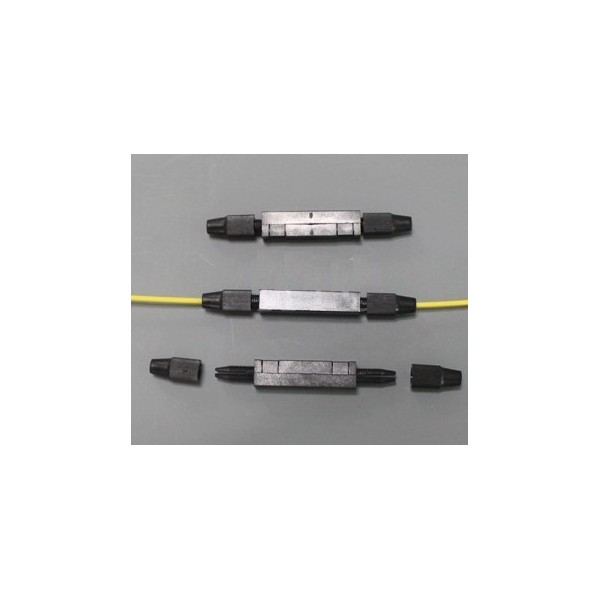

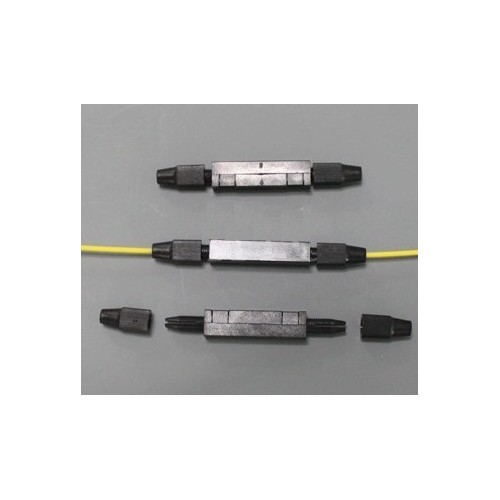

0.9mm Splice Mechanicals

Features
1.Fiber precision with concentric connection
2.Screw coupling ensure the products stability
3.Standard UL kit,comply with RoHS
4.High corrosion
5.Strong interchangeability

Inquiry

0.9mm Splice Mechanicals

Features
1.Fiber precision with concentric connection
2.Screw coupling ensure the products stability
3.Standard UL kit,comply with RoHS
4.High corrosion
5.Strong interchangeability

Applications
*Telecommunication network
*Fiber test equipment
*FTTH

Specifications

Item

SM

MM

Insertion loss

＜0.3 dB

＜0.3dB

Return loss

＞45dB

＞25dB

Insert-pull test

500 次 ＜0.3 dB

Operating temperature

-40℃～+ 75℃

Suit cable

250um bare fiber or 0.9mm fiber cable



Ordering Information
*0.9mm splice mechanicals available
*2.0/3.0mm splice mechanicals available
*FTTH cable splice mechanicals available
*All kindly field connectors available
