Featurres and Appllicattiions
1. Used in oil field, mine andchemical industry, for temperature and pressure inspection toavoid any accident.
2. Good mechanical property, transmissionpropertyand environmental property.
3. Stainless tube protectsfibersinside, small diameter and high intensity.
4. Hermetic design, rust resistance and waterproof.
Seamless TubeArmored FO Cable

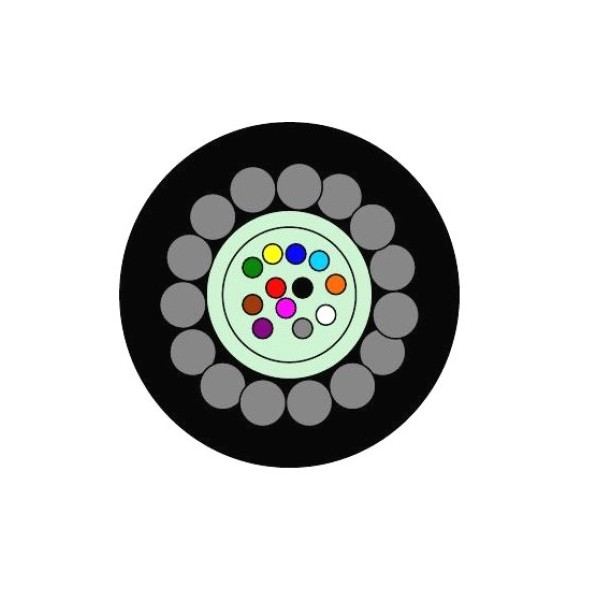

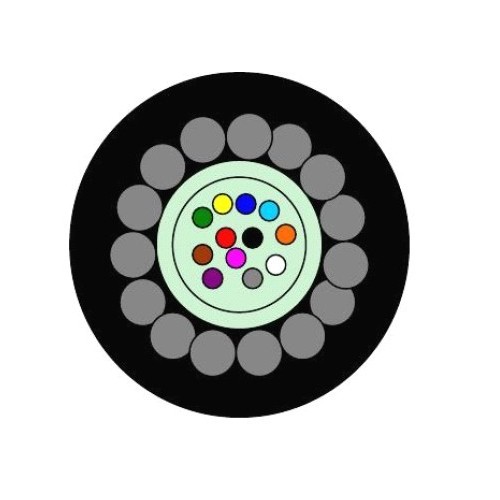

Cable structure
1.LSZH Jacket(OD:6.0mm)
2.0.6mmsteel wire*15
3.Stainless Seamless Tube(OD:2.5mm)
4.1-12F colored bare fiber injelly
Featurres and Appllicattiions
1. Used in oil field, mine andchemical industry, for temperature and pressure inspection toavoid any accident.
2. Good mechanical property, transmissionpropertyand environmental property.
3. Stainless tube protectsfibersinside, small diameter and high intensity.
4. Hermetic design, rust resistance and waterproof.
Speciiffiicattions:
| Item | Units | Single Mode | Multimode | |
| Core/Mode Diameter | μm | 9.2±0.4μm@1310nm 10.4±0.8μm@1550nm |
50±2.5μm | 62.5±2.5μm |
| Cladding Diameter | μm | 125±1μm | 125±1μm | 125±1μm |
| Max. Attenuation | dB/km | 0.35dB/km@1310nm 0.25dB/km@1550nm |
3.5dB/km@850nm 1.5dB/km@1300nm |
3.5dB/km@850nm 1.5dB/km@1300nm |
| Operating temperature | ℃ | -40℃~+85℃ Outer diameter |
||
| Outer diameter | mm | 6.0±0.30mm | ||
| Net weight | kg/km | 58 | ||
| Allowable bending radius | (mm) | Dynamic20D Static10D | ||
| Allowable tensile | （N） | 1000（long-term） 1500(short-term) | ||
| Crush resistant | N/100mm | 800（long-term） 1000(short-term) | ||
