2core spiral metal armored fiber optic cable
Fiber Optic Cable Types:/Armored Fiber Optic Cable Types
1.
Sinlge mode fiber optic cable(G652d,G657)
Multimode fiber optic cable:OM1,OM2,OM3,OM4
2.
*Simples fiber optic cable:availble cable diamter:0.9mm,2.0mm.3.0mm
*Duplex fiber optic cable:
2 in 1 type:cable diamter:most common type are 2.8mm,3.0mm,4.8mm
Zipcore typesavailible cable diameter:2.0mm/3.0mm
*Multi-core fiber optic cable:
4 core fiber optic cable:most use 4.0mm,4.5mm,4.8mm,5.0mm
6 core fiber optic cable:most use 5.0mm,5.5mm,6.0mm
8 core fiber optic cable:5.0mm,6.0mm
12 core fiber optic cable:5.5mm
2 in one fibr optic cable Structures for refernce

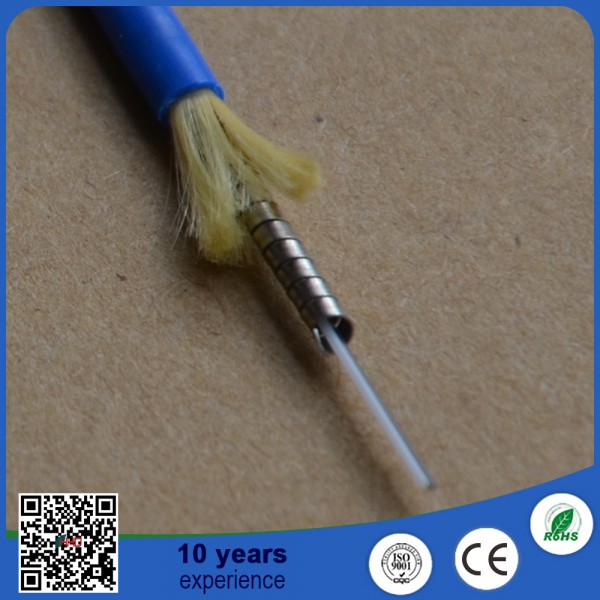

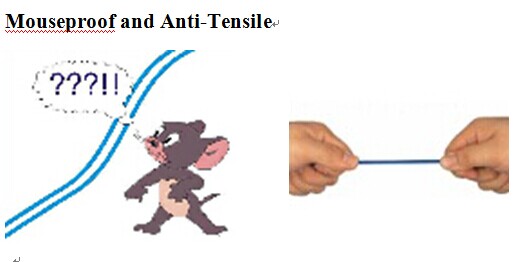

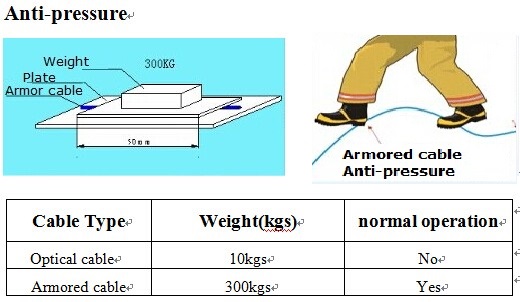

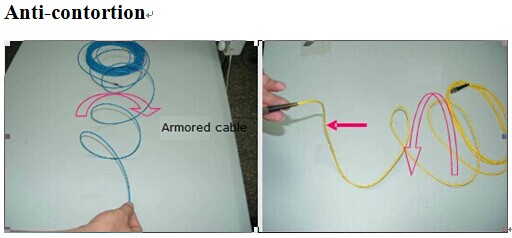

Amroed fiber optic cable is base on the common fiber optic cable,between kavler and fibers,there spriral metal tube to protect the fibers,protect fiber from animal bite and Dragging, hitting or pressing .
Armored fiber optic cable
Applications
FTTH
Outdoor emergency,
camera.
.Used as connectors in optical communication equipment rooms and distribution frames;
.Used as optical apparatus connectors.
.Used in poor condition outside cabling;
.Used as pigtails and patch cords;
.meet various requirements market and clients.
Features
1.Good mechanical and environmentai characteristics;
2.soft, flexible, solid, easy to splice ,It’s especially applied to optical long-distance, field, building wiring, trunking connectors;
3.flame retardant characteristics and the meet the requirements of relevant standards;
DETAILS
*Fiber Type: Single-mode fiber G652 G657, G655, Multimode fiber 50/125 62.5/125, OM3
*Jacket Material: LSZH, PVC, LSZH, TPU, ETFE etc
*Jacket Color: G652-Blue, G657-Gray, G655-Green, Multimode Fiber-Orange(or Gray),
*Stainless Steel Tube:SUS304, SUS204, or other contracted materials requests
*Other Requirements: other contracted
CABLE PARAMETERS
STRUCTURE SIZE (TABLE ONE)
ITEM | CABLE OD.mm(a) | S.S.T.OD.mm(b) | T.B.O.F.OD.mm(C) |
1.8MM | Φ1.8±0.1 | Φ0.9±0.03 | Φ0.5 |
2.0MM | Φ2.0±0.1 | Φ0.9±0.03 | Φ0.5 |
2.4MM | Φ2.4±0.1 | Φ0.9±0.03 | Φ0.5 |
2.8MM | Φ2.8±0.1 | Φ0.9±0.03 | Φ0.5 |
3.0MM | Φ3.0±0.1 | Φ0.9±0.03 | Φ0.9 |
Applications

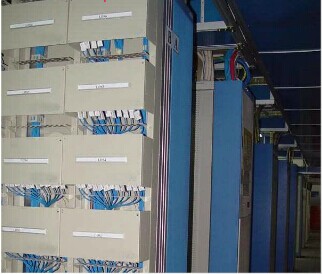

*Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable *Used in communications in data center, during ODF with armored patchcord and pigtail;
*Used in the open field, connections between optical equipments;
*Used in base station, for BBU to RRU.
MECHANICAL PROPERTIES(TABLE TWO)
ITEM | CABLE OD. mm(a) |
MAXIMUM TENSILE | BEND RADIUS* | L.P. N/100mm |
|||
S.T. | L.T. | Dyn. | Sta | ||||
1.8MM | Φ1.8±0.1 | 160 | 80 | 50 | 30 | 5000 | |
2.0MM | Φ2.0±0.1 | 200 | 100 | 50 | 30 | 4500 | |
2.4MM | Φ2.4±0.1 | 250 | 130 | 50 | 30 | 4500 | |
2.8MM | Φ2.8±0.1 | 500 | 250 | 60 | 30 | 3500 | |
3.0MM | Φ3.0±0.1 | 600 | 300 | 60 | 30 | 3500 |
*OD. = Outside Diameter
*S.T.=Short Term
*L.T.=Long Term
*Dyn. = Dynamic
*Sta. = Static
*L.P. = Lateral Pressure
*S.S.T.OD.= Stainless Steel Tube Outside Diameter
*T.B.F.OD. = Tight-Buffered Outside Diameter
*All the values in the table two are for reference only
*The bending radius of G657 series fiber will be less than 15mm
ARMORED OPTICAL CABLE LSZH/PVC/PU.. ROHS D.xx 0000M
Cable Length
Standard length: 500m 1000m 1500m
Environment protection certifications
RoHS
Packing
Free Packing
Standard roll (wooden pallet)
optional packing
Metal roll, with composite material box
