6 Core Armored Fiber Optic Cables
*CE,Rohs.international standard quality.
*Fast delivery
*10 times stronger than ordinary fiber optic cables.
*Metal tube protected fibers from animal bite and dragging,hitting or pressing.
*CE,Rohs.international standard quality.
*Fast delivery
*10 times stronger than ordinary fiber optic cables.
*Metal tube protected fibers from animal bite and dragging,hitting or pressing.

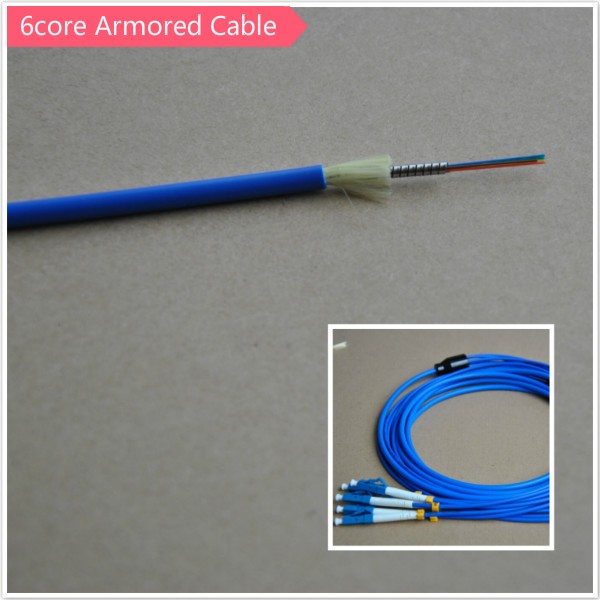

6 Core Armored Fiber Optic Cables
6 core armored fiber optic cable was covered by sprial stainless steel tube.
with light weight,and 10 times stronger than common fiber cable.
More flexible
High tensile strength
anti-Bending
rodent cable
Amored fiber optic cable with its good performance work on hard environment.
Applications
.Used as connectors in optical communication equipment rooms and distribution frames;
.Used as optical apparatus connectors.
.Used in poor condition outside cabling;
.Used as pigtails and patch cords;
.meet various requirements market and clients.
Features
1.Good mechanical and environmentai characteristics;
2.soft, flexible, solid, easy to splice ,It’s especially applied to optical long-distance, field, building wiring, trunking connectors;
3.flame retardant characteristics and the meet the requirements of relevant standards;
CABLE PARAMETERS
STRUCTURE SIZE (TABLE ONE)
Cable Count |
ITEM | CABLE OD.mm(a) | S.S.T.OD.mm(b) | T.B.O.F.OD.mm(C) |
4 | 4.5MM | Φ4.5±0.2 | Φ2.4±0.02 | Φ0.5 |
6 | 4.5MM | Φ4.5±0.2 | Φ2.6±0.03 | Φ0.5 |
8 | 5.0MM | Φ5.0±0.2 | Φ3.0±0.05 | Φ0.5 |
10 | 5.0MM | Φ5.0±0.25 | Φ3.0±0.05 | Φ0.5 |
12 | 5.5MM | Φ5.5±0.25 | Φ3.2±0.05 | Φ0.5 |
24 | 7.0MM | Φ7.0±0.3 | Φ4.3±0.05 | Φ0.5 |
MECHANICAL PROPERTIES(TABLE TWO)
ITEM | CABLE OD. mm(a) |
CABLE WEIGHT | BEND RADIUS* | L.P. N/100mm |
|||
S.T. | L.T. | Dyn. | Sta | ||||
4 | Φ4.5±0.2 | 26.5 | 800 | 400 | 70 | 35 | 3000 |
6 | Φ4.5±0.2 | 28.5 | 1000 | 500 | 100 | 50 | 3000 |
8 | Φ5.0±0.2 | 33.0 | 1000 | 500 | 100 | 50 | 3000 |
10 | Φ5.0±0.25 | 36.0 | 1000 | 500 | 120 | 60 | 3000 |
12 | Φ5.5±0.25 | 39 | 1200 | 600 | 150 | 75 | 3000 |
24 | Φ7.0±0.3 | 54.0 | 1500 | 750 | 170 | 85 | 3000 |
OD. = Outside Diameter S.T.=Short Term L.T.=Long Term Dyn. = Dynamic Sta. = Static
L.P. = Lateral Pressure S.S.T.OD.= Stainless Steel Tube Outside Diameter
T.B.F.OD. = Tight-Buffered Outside Diameter
*All the values in the table two are for reference only
*The bending radius of G657 series fiber will be less than 15mm
*Other Requirements: other contracted special requests
Print
ARMORED OPTICAL CABLE LSZH/PVC/PU.. ROHS D.xx 0000M
Cable Length
Standard length: 500m 1000m 1500m
Environment protection certifications
RoHS
Packing
Free Packing
Standard roll (wooden pallet)
DETAILS:
*Fiber Type: Single-mode fiber G652, G657, G655, Multimode fiber 50/125,62.5/125, OM3,
*Jacket Material: PVC, LSZH, TPU, ETFE etc.
*Jacket Color: G652-Blue, G657-Gray, G655-Green, Multimode Fiber-Orange(or Gray),
*Stainless Steel Tube: SUS304, SUS204, or other contracted materials requests
