Multi-fiber Flat Tight-buffered Armored Fiber Optic Cable
APPLICATIONS
*Apply to all types of optical connectors
*Apply to pigtails and patch cords
*Apply to connectors in optical communication equipment rooms, distribution frames and FTTX
*Apply to optical appliances connection
*Apply to indoor horizontal or vertical cabling, multi-medium connection, LAN
*Apply to connections of long distance, outdoor, building cabling, combination cabling of fiber optic and electronic.
*Apply to high density cabling
FEATURES
*Good mechanical and environmental characteristics
*Soft, flexible, Stable, easy to splice
*Flame retardant characteristics meet the requirements of relevant standards
*Improve existing function based on customers’ various requirements
DETAILS:
*Fiber Type: Single-mode fiber G652, G657, G655, Multimode fiber 50/125,62.5/125, OM3,
*Jacket Material: PVC, LSZH, TPU, ETFE etc.
*Jacket Color: G652-Blue, G657-Gray, G655-Green, Multimode Fiber-Orange(or Gray),
*Stainless Steel Tube: SUS304, SUS204, or other contracted materials requests
*Other Requirements: other contracted special requests

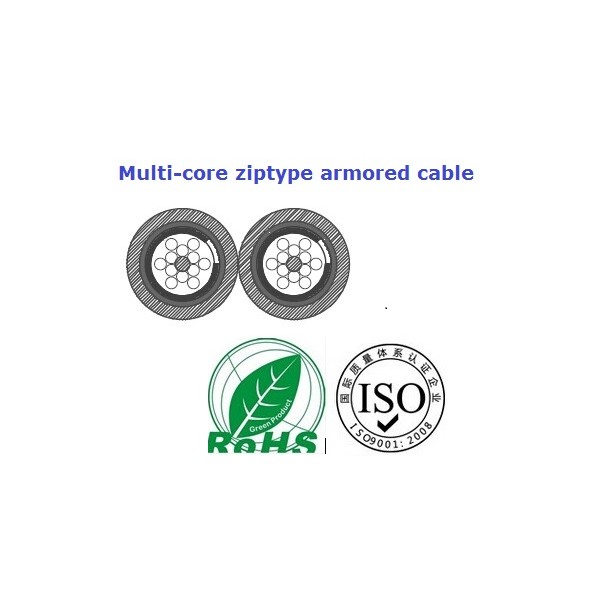

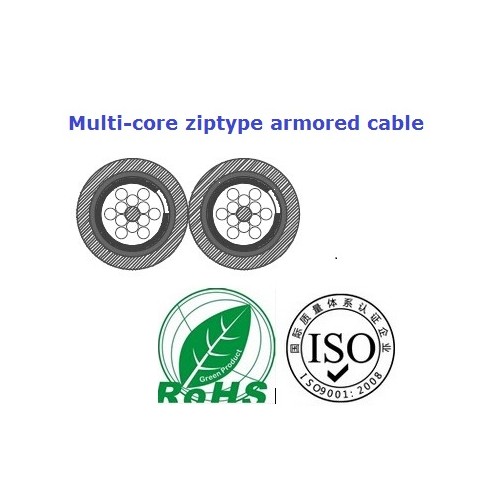

CABLE PARAMETERS
STRUCTURE SIZE (TABLE ONE)
Cable Count |
ITEM |
CABLE OD.mm(a) |
S.S.T.OD.mm(b) |
T.B.O.F.OD.mm(C) |
24 |
24S |
Φ4.2*8.4 |
Φ2.0±0.02 |
Φ0.25 |
MECHANICAL PROPERTIES(TABLE TWO)
ITEM |
CABLE OD. mm(a) |
CABLE WEIGHT |
|
BEND RADIUS* |
|
L.P.
N/100mm |
S.T. |
L.T. |
Dyn. |
Sta |
24S |
4.2*8.4 |
33.4 |
1200 |
600 |
90 |
45 |
3500 |
OD. = Outside Diameter S.T.=Short Term L.T.=Long Term Dyn. = Dynamic Sta. = Static
L.P. = Lateral Pressure S.S.T.OD.= Stainless Steel Tube Outside Diameter
T.B.F.OD. = Tight-Buffered Outside Diameter
*All the values in the table two are for reference only
*The bending radius of G657 series fiber will be less than 15mm
