structural steel armoured cable
1..Anti-Tensile,Anti-pressure,mouseproof,
2.Resistant Improper reverse bending damage,
3.Easy Construction,
5.Saving maintenance costs;
5.Adapt to harsh environments and man-made damage.
1..Anti-Tensile,Anti-pressure,mouseproof,
2.Resistant Improper reverse bending damage,
3.Easy Construction,
5.Saving maintenance costs;
5.Adapt to harsh environments and man-made damage.
Armoured cable
Features:
1..Anti-Tensile,Anti-pressure,mouseproof,
2.Resistant Improper reverse bending damage,
3.Easy Construction,
5.Saving maintenance costs;
5.Adapt to harsh environments and man-made damage.

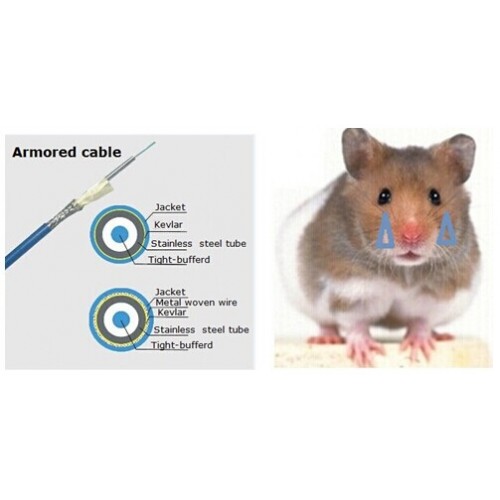

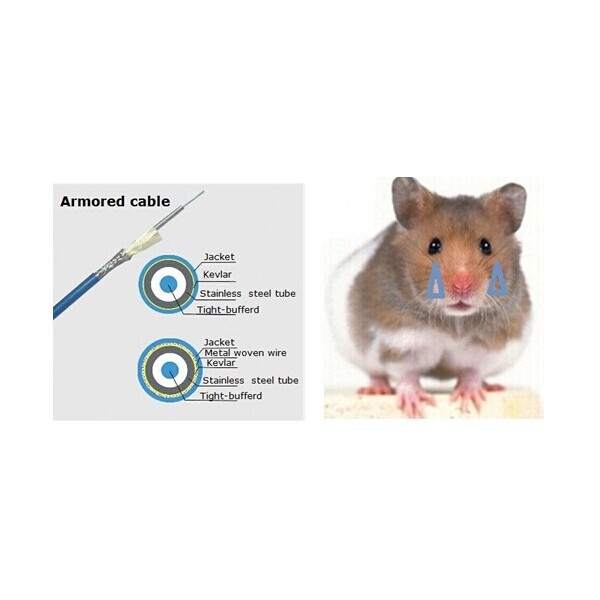

Structure
1).tight-bufferd +Kevlar(Anti-Tensile)+Stainless steel tube(Anti-pressure,Anti- bending,mouseproof)+Outer jatcket (lszh,pvc,tpu,etfe..)
2).1.tight-bufferd fiber/bare fiber+Kevlar(Anti- Tensile)+Stainless steel tube(Anti- pressure,Anti-bending,mouseproof)+Stainless steel woven wire(Anti-twist)+Outer jatcket(lszh,pvc,tpu,etfe..)
Application:
1)structure 1 and 2
*Lacal Area Networks, Wide Area Network, Cable TV
*Testing Instrument, Active Device Connection
*Fiber Optic Distribution Frame(ODF)
* Fiber to the Home(FTTH)
*Telecommunication Network
2)structure 2
*used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
*Used in communications in data center, during ODF with armored patchcord and pigtail;
*used in the open field, connections between optical equipments;
*Used in base station, for BBU to RRU.
Popular Use:
*Live broadcast;
*Live program,
*Military exercise,
*Musicevent,
*Temporary network
Base station..etc.
Cabling freely
Features
*Multi-bare fibers used, to decrease the outer diameter and cable weight, also convenient for laying and splice;
*Cable using high property aramid yarn, increasing tension property, and fit for long distance use;
*Cable using spiral metal armored layer with best crush property, and cable is very flexible and easy bend;
*Cable using metal braid, increasing twist property and tension property;
*All kinds of jacket material fit for any different environments
3)Characterization:
1.High precision mechanism, high wiring density
2.Simplex/Duplex patch cord available
3.Fiber diameter(mm): 0.9, 2.0, 3.0
4.Fiber type: 9/125um(SM), 50/125um(MM-OM2), 62.5/125um(MM-OM1), available for OM3
5.Cable material: PVC,LSZH,PU..etc.
6.Length customized, 3M, 5M...or others.
7.RoHS
8.CCTC Ferule.
