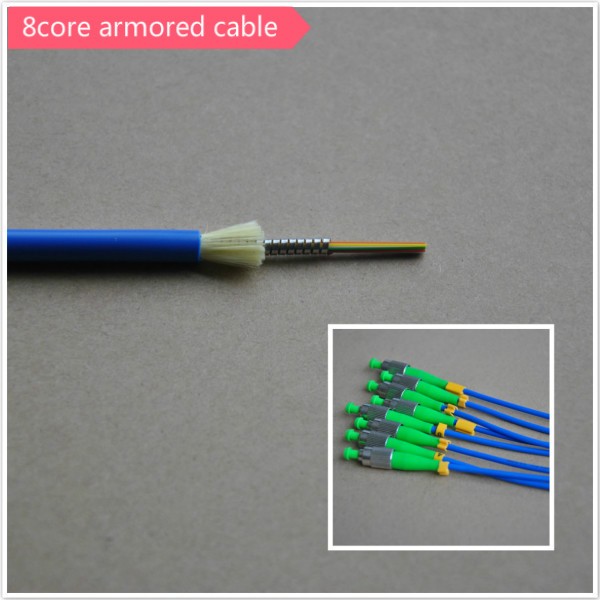

Fiber Optic Cable 8 Core,Flexible Spiral Metal Armored Fiber Optic Ethernet Cable



8 core cable colour code:

Blue, orange, green, brown, grey, white, red and black.



New Fiber Optic Cable 8 Core Armored

With the development of technology needs，there new fiber optic cable were disigned---armored fiber optic cable

*The old - ordinery fiber optic cable without metal tube to protect the fibers.

*The new - armored fiber optic cable with metal tube to protect the fibers from animal bites and dragging,hitting,pressing.



Fiber Optic Cable 8 Core structure:(2 core for refernce)





Applications

*used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
*Used in communications in data center, during ODF with armored patchcord and pigtail；    used in the open field, connections between optical equipments；
*Used in base station, for BBU to RRU。




 Features
*Multi-bare fibers used, to decrease the outer diameter and cable weight, also convenient for laying and splice；
*Cable using high property aramid yarn, increasing tension property, and fit for long distance use；
*Cable using spiral metal armored layer with best crush property, and cable is very flexible and easy bend；
*Cable using metal braid, increasing twist property and tension property；
*All kinds of jacket material fit for any different environments.






CABLE PARAMETERS

STRUCTURE SIZE (TABLE ONE)

Cable
  Count		 ITEM CABLE OD.mm(a) S.S.T.OD.mm(b) T.B.O.F.OD.mm(C)
4 core 4.5MM  Φ4.5±0.2  Φ2.4±0.02  Φ0.5
6 core 4.5MM  Φ4.5±0.2  Φ2.6±0.03  Φ0.5
8 core 5.0MM  Φ5.0±0.2  Φ3.0±0.05  Φ0.5
10 core 5.0MM   Φ5.0±0.25  Φ3.0±0.05  Φ0.5
12 5.5MM  Φ5.5±0.25  Φ3.2±0.05  Φ0.5
24 7.0MM  Φ7.0±0.3  Φ4.3±0.05  Φ0.5



MECHANICAL PROPERTIES(TABLE TWO)

ITEM CABLE OD.
mm(a)		 CABLE WEIGHT 　 BEND RADIUS* 　 L.P.

    N/100mm
S.T. L.T. Dyn.  Sta
4 core  Φ4.5±0.2  26.5 800 400 70 35 3000
6 core Φ4.5±0.2  28.5 1000 500 100 50 3000
8 core Φ5.0±0.2  33.0 1000 500 100 50 3000
10 core Φ5.0±0.25 36.0 1000 500 120 60 3000
12 core Φ5.5±0.25 39 1200 600 150 75 3000
24 core Φ7.0±0.3  54.0 1500 750 170 85 3000



OD. = Outside Diameter S.T.=Short Term L.T.=Long Term Dyn. = Dynamic Sta. = Static
L.P. = Lateral Pressure S.S.T.OD.= Stainless Steel Tube Outside Diameter
T.B.F.OD. = Tight-Buffered Outside Diameter
*All the values in the table two are for reference only
*The bending radius of G657 series fiber will be less than 15mm

*Other Requirements: other contracted special requests
