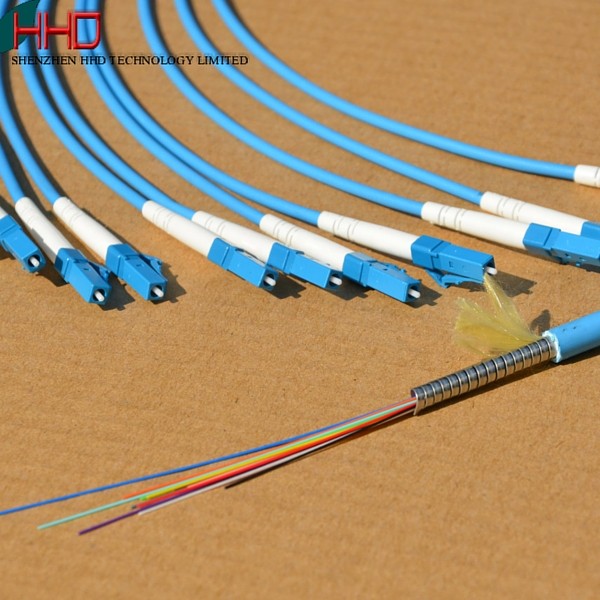

lc 12 core fiber optic patch cord cable
12 core fiber optic cable
Options:Armored fiber optic cable
Unarmored fiber optic cable
Options:Corning fibers
YOFC fibers
Certification:CE/ISO9001/RoHS
12 core fiber optic cable
Options:Armored fiber optic cable
Unarmored fiber optic cable
Options:Corning fibers
YOFC fibers
Certification:CE/ISO9001/RoHS
lc 12 core fiber optic patch cord cable
Details
fiber optic core:12 core fiber optic cable
Connector:lc patch cord
Fibre optics type:single mode 12 core fiber optic cable
Cable OD.:5.5mm fiber optic cable
Cable Jacket:LSZH PVC cable
Cable Type:armoured fiber optic cable/Rodent cable
Applictiaon:telecommunication
Application:
1.Pigtails and patch cords
2.Connections of optical communication equipment rooms, distribution frames and FTTX
3.Optical appliances connection
4.Indoor horizontal or vertical cabling, multi-medium connection, LAN
5.Connections of long distance, outdoor, building cabling, combination cabling of fiber optic and electronic
6.Telecommunication
7. CATV
8. Network
9.Broadband
12 core fiber optic cable specification
Cable Count |
ITEM | CABLE OD.mm(a) |
S.S.T. OD.mm(b) |
T.B.O.F. OD.mm(C) |
4F | 4.5MM | Φ4.5±0.2 | Φ2.4±0.02 | Φ0.5 |
6F | 4.5MM | Φ4.5±0.2 | Φ2.6±0.03 | Φ0.5 |
8F | 5.0MM | Φ5.0±0.2 | Φ2.8±0.05 | Φ0.5 |
10F | 5.0MM | Φ5.0±0.25 | Φ3.0±0.05 | Φ0.5 |
12F | 5.5MM | Φ5.5±0.25 | Φ3.2±0.05 | Φ0.5 |
24F | 7.0MM | Φ7.0±0.3 | Φ4.3±0.05 | Φ0.5 |
Cable Count |
ITEM | CABLE OD. mm(a) |
CABLE WEIGHT (kg) |
MAXIMUM TENSILE | BEND RADIUS* | L.P. N/100mm |
||
S.T. | L.T. | Dyn. | Sta. | |||||
4F | 4.5MM | Φ4.5±0.2 | 26.5 | 800 | 400 | 70 | 35 | 3000 |
6F | 4.5MM | Φ4.5±0.2 | 38.5 | 1000 | 500 | 100 | 50 | 3000 |
8F | 5.0MM | Φ5.0±0.2 | 33.0 | 1000 | 501 | 100 | 50 | 3000 |
10F | 5.0MM | Φ5.0±0.25 | 36.0 | 1000 | 502 | 120 | 60 | 3000 |
12F | 5.5MM | Φ5.5±0.25 | 39.0 | 1200 | 600 | 150 | 75 | 3000 |
24F | 7.0MM | Φ7.0±0.3 | 54.0 | 1500 | 750 | 170 | 85 | 3000 |
Why Choose Us?
SHENZHEN HHD TECHNOLGY LIMITED, build in 2006,with 10 yeares experience in this field.HHd sinerely offer the best service and good quality & competitive price for you.
1. Ceramic ferrule ,we use CCTC and A type ferrule.
2. stainless steel tube,we choose SUS304
3. we produce the cable ourselves, can control the cost.and the parts we won't change suppliers,so there is guarantee of quality.
4. fast deliver date:3-15 working days.if in emergency,need to let us know.we will try the best to arrange the priority for you.
5. Express offer DHL,TNT,Fedex,we coopate with the forwarding company many years ,good service and cheaper shipping cost will be offer to you. customer availble to request the forwardng company.
