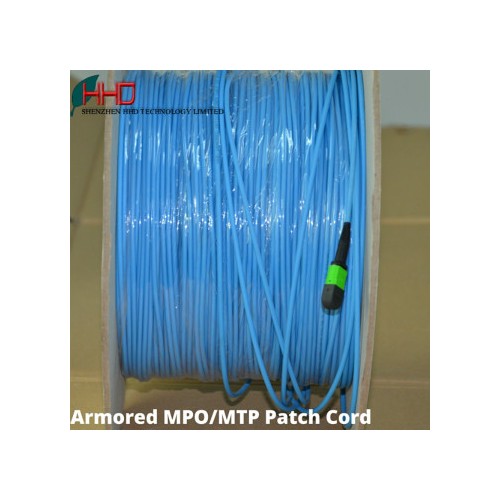

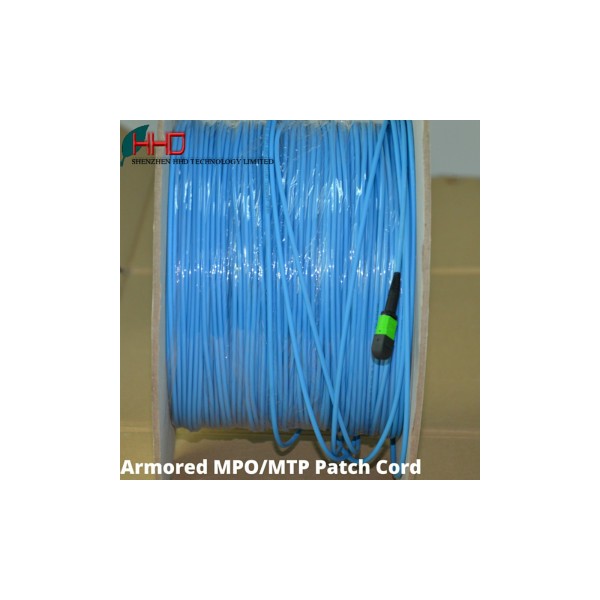

LSZH Mikrorør armored Fiberpatchkabel single mode MPO

1.LSZH Mikrorør armored Fiberpatchkabel for MPO

2.US CONEC MPO connector

3.cable anti-rodent

   hihg tensile strength

   anti-stample

4.factory price

Inquiry

LSZH Mikrorør armored Fiberpatchkabel single mode MPO





Patch Cord Features

1.High return loss

2. Low insertion loss

3. Patch cord Passed RoHS,ISO9001

4. LZSH or PVC jacket

5. CCTC A Type optical fiber Ferrule

6. Fiber Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP
7.  Polishing Options: PC/UPC/APC



Features

1.Mouseproof, Anti-Tensile,Anti-pressure,
2.Resistant  Improper reverse bending damage,
3.Easy Construction,
4.Saving maintenance costs;
5.Adapt to harsh environments and man-made damage.



Application

1. Telecommunication
2.Communication equipment rooms, FTTX
3.Optical appliances connection
4.LAN
5.building cabling
6.Pigtails and patch cords
7. CATV
8. Network
9. Broadband



Specifications&Performances

 MPO 12 core micro steel fiber optic cable

Cable
Count		 ITEM CABLE
OD.mm(a)		 S.S.T.
OD.mm(b)		 T.B.O.F.
OD.mm(C)
12 3.0 Φ3.0±0.2 Φ2.0±0.02 Φ0.25
12 3.5 Φ3.5±0.2 Φ2.2±0.03 Φ0.25
12 4.2 Φ4.2±0.2 Φ2.2±0.05 Φ0.25





ITEM CABLE OD.
mm(a)		 CABLE
WEIGHT		 MAXIMUM TENSILE BEND RADIUS* L.P.
N/100mm
S.T. L.T. Dyn. Sta
3.0 Φ3.0±0.1 11.2 400 200 60 30 3500
3.5 Φ3.5±0.2 15.4 800 400 70 35 3000
4.2 Φ4.2±0.2 18.7 1000 500 90 40 3000

 LSZH Mikrorør armored Fiberpatchkabel single mode MPO



ORIGINAL MANUFACTURER PROVIDE YOU HIGH QUALITY OPTICAL FIBER CABLES_HHD

-------------------------------------------------------------------------------------------------------------------------------------------

OPTICAL FIBER CABLE     FIBER PATCH CABLES       SPCIAL ARMORED FIBER CABLE

1 Core Simplex                            FC-FC 1 Core SM                     4.2mm 12core Armored  Fiber Cable

2 Core Duplex                              LC-LC 2 Core OM3                    3.0mm  MPO Armored Fiber Cable

4 Core Optical Cable                    LC-LC 4 Core OM3                    4.8mm 2 Core Armored Fiber Cable

6 Core Optical Cable                    LC-LC 6 Core SM                       7.0mm Armored Cable without Fibers

8 Core Optical Cable                    FC-FC 12 Core SM

12 Core Optical Cable                  SC/APC 2 Core Zip type
