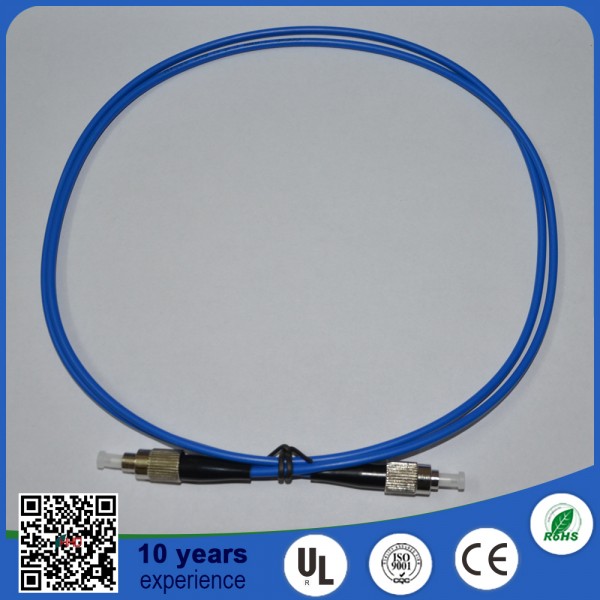

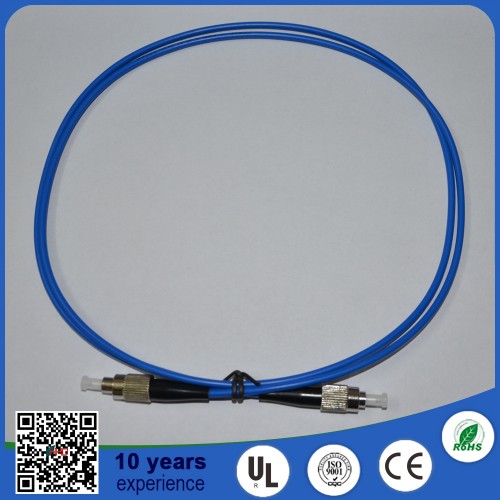

PM Patchcord
1.PM Patchcord,Polarization Maintaining (PM) Patch Cord
2.Protected by armored tube
3.single moe simplex
4.980, 1030, 1064,1310,1550nm available
5.Fiber Import From Japan
1.PM Patchcord,Polarization Maintaining (PM) Patch Cord
2.Protected by armored tube
3.single moe simplex
4.980, 1030, 1064,1310,1550nm available
5.Fiber Import From Japan
PM Patchcord,Polarization Maintaining (PM) Patch Cord
980 1030 1310 1550
Polarization maintaining (PM) patch cord / jumper leads are built with polarization maintaining panda fiber and connectorise using FC/UPC, FC/APC, SC/UPC, SC/APC and LC connectors. FC connectors can be supplied with wide key (2.14mm, N type) or narrow key (2.02mm, R key) width. Patchcords can be supplied in 250um bare fiber, 900um buffered fiber or 3mm cable. PMP features low insertion loss, high extinction ratio and high return loss. The slow or fast axis can be aligned to the connector key.
Polarization Maintaining PM Patch Cord 980, 1030, 1064,1310,1550 nm | ||
Specifications | ||
Parameters | Values | |
Connector type | FC/UPC, SC/UPC, FC/APC, SC/APC | |
Wavelength | 980nm, 1030nm, 1064nm | 1310nm, 1550nm |
Insertion loss | <0.7dB | <0.4dB |
Optical return loss | >50dB (for UPC), >60dB (for APC) | >50dB (for UPC), >60dB (for APC) |
Axis alignment | slow axis of fibre aligned to connector key | |
Extinction ratio | >23dB (R key), >20dB (N key) | |
Max. optical power | 300mw | |
Connector key for FC type |
Narrow key (R key, 2.02mm) or wide key (N key, 2.10~2.14mm) | |
Fiber length tolerance | +/-10cm | |
Fiber type | PM panda fiber | |
Operation temperature | -5 to +70°C | |
Storage temperature | -40 to +85°C |
