2core spiral metals armed cable

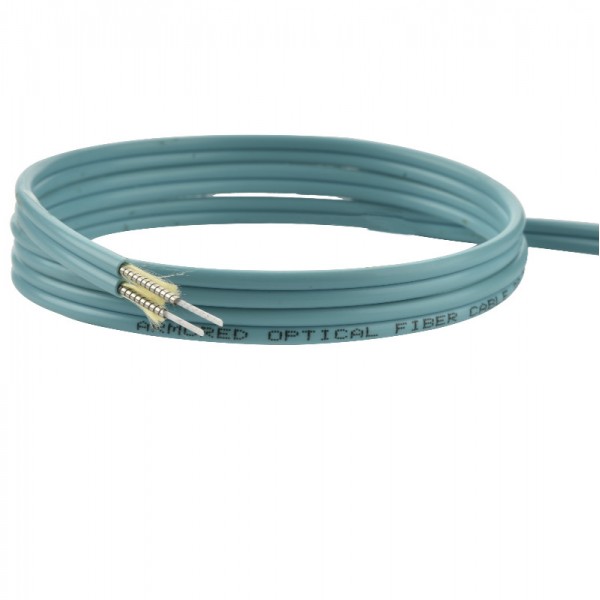

Structures
Applications
.Used as connectors in optical communication equipment rooms and distribution frames;
.Used as optical apparatus connectors.
.Used in poor condition outside cabling;
.Used as pigtails and patch cords;
.meet various requirements market and clients.
Features
1.Good mechanical and environmentai characteristics;
2.soft, flexible, solid, easy to splice ,It’s especially applied to optical long-distance, field, building wiring, trunking connectors;
3.flame retardant characteristics and the meet the requirements of relevant standards;
DETAILS
*Fiber Type: Single-mode fiber G652 G657, G655, Multimode fiber 50/125 62.5/125, OM3
*Jacket Material: LSZH, PVC, LSZH, TPU, ETFE etc
*Jacket Color: G652-Blue, G657-Gray, G655-Green, Multimode Fiber-Orange(or Gray),
*Stainless Steel Tube:SUS304, SUS204, or other contracted materials requests
*Other Requirements: other contracted
CABLE PARAMETERS

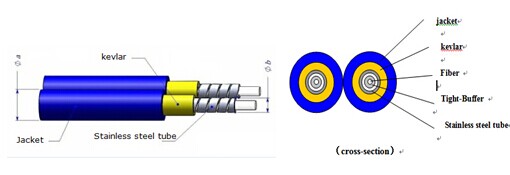

STRUCTURE SIZE (TABLE ONE)
ITEM | CABLE OD.mm(a) | S.S.T.OD.mm(b) | T.B.O.F.OD.mm(C) |
1.8MM | Φ1.8±0.1 | Φ0.9±0.03 | Φ0.5 |
2.0MM | Φ2.0±0.1 | Φ0.9±0.03 | Φ0.5 |
2.4MM | Φ2.4±0.1 | Φ0.9±0.03 | Φ0.5 |
2.8MM | Φ2.8±0.1 | Φ0.9±0.03 | Φ0.5 |
3.0MM | Φ3.0±0.1 | Φ0.9±0.03 | Φ0.9 |
Applications
*Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable *Used in communications in data center, during ODF with armored patchcord and pigtail;
*Used in the open field, connections between optical equipments;
*Used in base station, for BBU to RRU.
MECHANICAL PROPERTIES(TABLE TWO)
ITEM | CABLE OD. mm(a) |
MAXIMUM TENSILE | BEND RADIUS* | L.P. N/100mm |
|||
S.T. | L.T. | Dyn. | Sta | ||||
1.8MM | Φ1.8±0.1 | 160 | 80 | 50 | 30 | 5000 | |
2.0MM | Φ2.0±0.1 | 200 | 100 | 50 | 30 | 4500 | |
2.4MM | Φ2.4±0.1 | 250 | 130 | 50 | 30 | 4500 | |
2.8MM | Φ2.8±0.1 | 500 | 250 | 60 | 30 | 3500 | |
3.0MM | Φ3.0±0.1 | 600 | 300 | 60 | 30 | 3500 |
*OD. = Outside Diameter
*S.T.=Short Term
*L.T.=Long Term
*Dyn. = Dynamic
*Sta. = Static
*L.P. = Lateral Pressure
*S.S.T.OD.= Stainless Steel Tube Outside Diameter
*T.B.F.OD. = Tight-Buffered Outside Diameter
*All the values in the table two are for reference only
*The bending radius of G657 series fiber will be less than 15mm
ARMORED OPTICAL CABLE LSZH/PVC/PU.. ROHS D.xx 0000M
Cable Length
Standard length: 500m 1000m 1500m
Environment protection certifications
RoHS
Packing
Free Packing
Standard roll (wooden pallet)
optional packing
Metal roll, with composite material box
