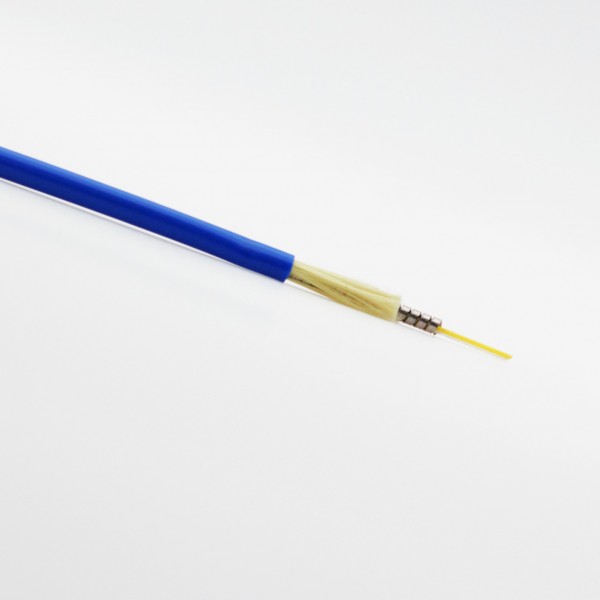

Armored Fiber Patch Cables
1.Certificate:RoHS,ISO9001,
2.Fast delivery date
3.Armored fiber optic cable is more stronger than unarmored fiber optic cablw
1.Certificate:RoHS,ISO9001,
2.Fast delivery date
3.Armored fiber optic cable is more stronger than unarmored fiber optic cablw
2Core Armored Fiber Patch Cables
Structures for 2core Armored Fiber Patch Cables.
2Core Fiber opitc cable types:round type(2 in 1)and zipcore type.here we show the round type structure:
Difference from armored fiber patch cables and fiber optic cable:
1.armored fiber patch cables:there not only kevlar and jaket to protect the fibers but still cover a layer of spiral stainless steel tube .Cables With light weight and stronger performance.
2.fiber optic cable:there only kevlar and outer Jacket to protect the fibers.easy borken.
Applications
.Used as connectors in optical communication equipment rooms and distribution frames;
.Used as optical apparatus connectors.
.Used in poor condition outside cabling;
.Used as pigtails and patch cords;
.meet various requirements market and clients.
Some Popular and special use for armored fiber patch cables
*emergmency use
*music event
*fiber optic camera.
*broadcast
*datecenter
*Catv
Features
1.Good mechanical and environmentai characteristics;
2.soft, flexible, solid, easy to splice ,It’s especially applied to optical long-distance, field, building wiring, trunking connectors;
3.flame retardant characteristics and the meet the requirements of relevant standards;
DETAILS
*Fiber Type: Single-mode fiber G652 G657, G655, Multimode fiber 50/125 62.5/125, OM3
*Jacket Material: LSZH, PVC, LSZH, TPU, ETFE etc
*Jacket Color: G652-Blue, G657-Gray, G655-Green, Multimode Fiber-Orange(or Gray),
*Stainless Steel Tube:SUS304, SUS204, or other contracted materials requests
*Other Requirements: other contracted
CABLE PARAMETERS
STRUCTURE SIZE (TABLE ONE)
ITEM | CABLE OD.mm(a) | S.S.T.OD.mm(b) | T.B.O.F.OD.mm(C) |
1.8MM | Φ1.8±0.1 | Φ0.9±0.03 | Φ0.5 |
2.0MM | Φ2.0±0.1 | Φ0.9±0.03 | Φ0.5 |
2.4MM | Φ2.4±0.1 | Φ0.9±0.03 | Φ0.5 |
2.8MM | Φ2.8±0.1 | Φ0.9±0.03 | Φ0.5 |
3.0MM | Φ3.0±0.1 | Φ0.9±0.03 | Φ0.9 |
Applications
*Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable *Used in communications in data center, during ODF with armored patchcord and pigtail;
*Used in the open field, connections between optical equipments;
*Used in base station, for BBU to RRU.
MECHANICAL PROPERTIES(TABLE TWO)
ITEM | CABLE OD. mm(a) |
MAXIMUM TENSILE | BEND RADIUS* | L.P. N/100mm |
|||
S.T. | L.T. | Dyn. | Sta | ||||
1.8MM | Φ1.8±0.1 | 160 | 80 | 50 | 30 | 5000 | |
2.0MM | Φ2.0±0.1 | 200 | 100 | 50 | 30 | 4500 | |
2.4MM | Φ2.4±0.1 | 250 | 130 | 50 | 30 | 4500 | |
2.8MM | Φ2.8±0.1 | 500 | 250 | 60 | 30 | 3500 | |
3.0MM | Φ3.0±0.1 | 600 | 300 | 60 | 30 | 3500 |
*OD. = Outside Diameter
*S.T.=Short Term
*L.T.=Long Term
*Dyn. = Dynamic
*Sta. = Static
*L.P. = Lateral Pressure
*S.S.T.OD.= Stainless Steel Tube Outside Diameter
*T.B.F.OD. = Tight-Buffered Outside Diameter
*All the values in the table two are for reference only
*The bending radius of G657 series fiber will be less than 15mm
ARMORED OPTICAL CABLE LSZH/PVC/TPU.. ROHS D.xx 0000M
Cable Length
Standard length: 500m 1000m 1500m
Environment protection certifications
RoHS
Packing
Free Packing
Standard roll (wooden pallet)
optional packing
Metal roll, with composite material box
