2F Armored Optical Fibre Cables TPU

2F Armored Optical Fibre Cables TPU

Optical fibre cables Types:/Armored optical fibre cables Types

1.

Sinlge mode optical fibre cables(G652,G657A.1,G657A.2)

Multimode fiber optic cable:OM1,OM2,OM3,OM4

2.

*Simplex  fiber optic cable:availble cable diamter:0.9mm,2.0mm.3.0mm

*Duplex fiber optic cable:

  2 in 1 type:cable diamter:most common type are 2.8mm,3.0mm,4.5mm,4.8mm

  Zipcore typesavailible cable diameter:2.0mm/3.0mm

*Multi-core fiber optic cable:

  4F Armored optical fibre cables :most use 4.5mm,4.8mm,5.0mm

  6F Armored optical fibre cables:most use 5.0mm,5.5mm,6.0mm

  8F Armored optical fibre cables:5.0mm,5.5mm ,6.0mm

 12F Armored optical fibre cables:5.5mm,6.0mm

2 in one fibr optic cable Structures for refernce

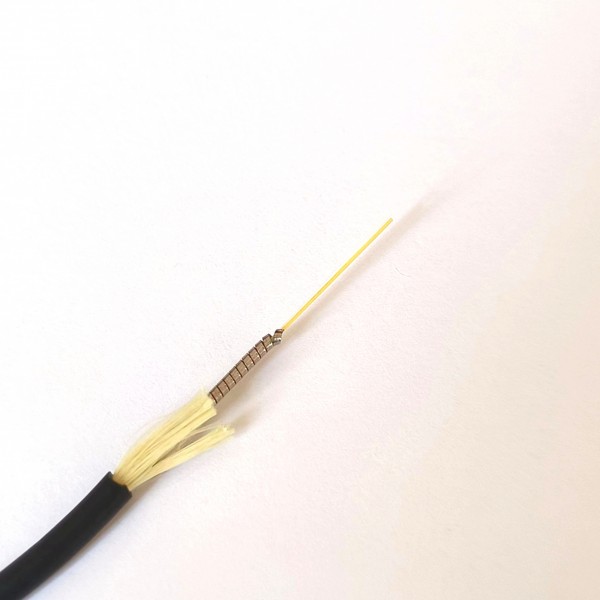

Amroed fiber optic cable is base on the common fiber optic cable,between kavler and fibers,there spriral metal tube to protect the fibers,protect fiber from animal bite and Dragging, hitting or pressing .



Armored fiber optic cable

Applications

FTTH

Outdoor emergency,

camera.

.Used as connectors in optical communication equipment rooms and distribution frames；
.Used as optical apparatus connectors.
.Used in poor condition outside cabling；
.Used as pigtails and patch cords；
.meet various requirements market and clients.

 Features
1.Good mechanical and environmentai characteristics;
2.soft, flexible, solid, easy to splice ，It’s especially applied to optical long-distance, field, building wiring, trunking connectors;
3.flame retardant characteristics and the meet the requirements of relevant standards;

DETAILS
*Fiber Type: Single-mode fiber G652  G657, G655, Multimode fiber 50/125 62.5/125, OM3
*Jacket Material:  LSZH, PVC, LSZH, TPU, ETFE etc
*Jacket Color: G652-Blue, G657-Gray, G655-Green, Multimode Fiber-Orange(or Gray),
*Stainless Steel Tube:SUS304, SUS204, or other contracted materials requests
*Other Requirements: other contracted

Applications
*Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable    *Used in communications in data center, during ODF with armored patchcord and pigtail；

*Used in the open field, connections between optical equipments；

*Used in base station, for BBU to RRU.

Print

ARMORED   OPTICAL   CABLE   LSZH/PVC/TPU..    ROHS     D.xx   0000M

Cable Length

Standard length: 500m 1000m 1500m

Environment protection certifications

RoHS



Packing

Free Packing

Standard roll (wooden pallet)

optional packing

Metal roll, with composite material box
