field fiber connector
field cable conncector
*IP67 waterproof
*Low connection loss
*high reliability
*resistant to harsh environmen
*use in field military optical fiber communication networks
field cable conncector
*IP67 waterproof
*Low connection loss
*high reliability
*resistant to harsh environmen
*use in field military optical fiber communication networks

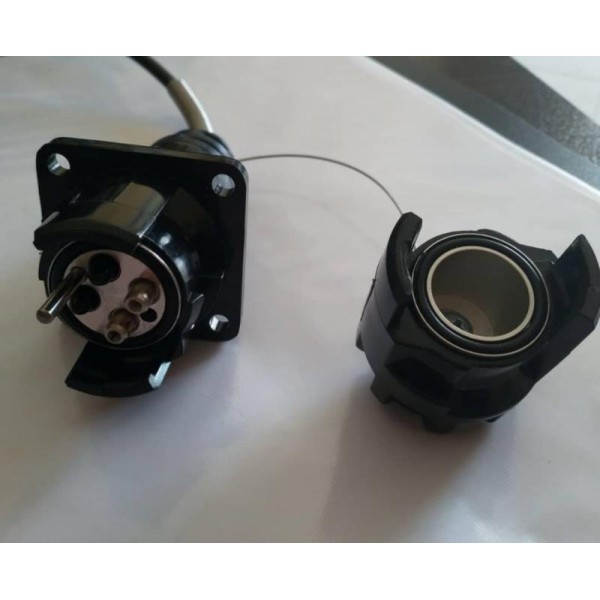

Field cable conncector
Field fiber optic connectors are designed for military field cables
Features and Application
*Militarry optical communication network
*Communication vehicle transmission,
*Long-distance space transmission,
*Communication soldier portable transmission tool
*Television teleconference signal transmission for actual combat exercises
* Coal mines, oil wells, natural gas, etc.
*Geological exploration communication
*Broadcast television broadcast* Emergency fiber optic communication.
Connector Parameters
Insertion loss |
SM |
≤1.0dB(Typical≤0.5dB) |
MM |
≤1.0dB(Typical≤0.3dB) |
|
Return loss |
SM |
≥50dB |
Mechanical behavior |
Plug |
≤1000N(Main Cable) |
Socket |
≤100N (Branch cable) |
|
Operating temperature |
-40℃~85℃ |
|
Protection level |
IP67 |
Socket installation size
Cable Diameter |
4.0mm,5.0mm |
|
Cable Jacket |
TPU |
|
Tensile unit |
Kevlar |
|
Fiber Type |
9/125、50/125、62.5/125 |
|
Fiber overlay |
900um Tight buffer |
|
Tensile strength |
Short term: 1200,Long-term 600N |
|
Operating temperature |
-40℃~85℃ |
