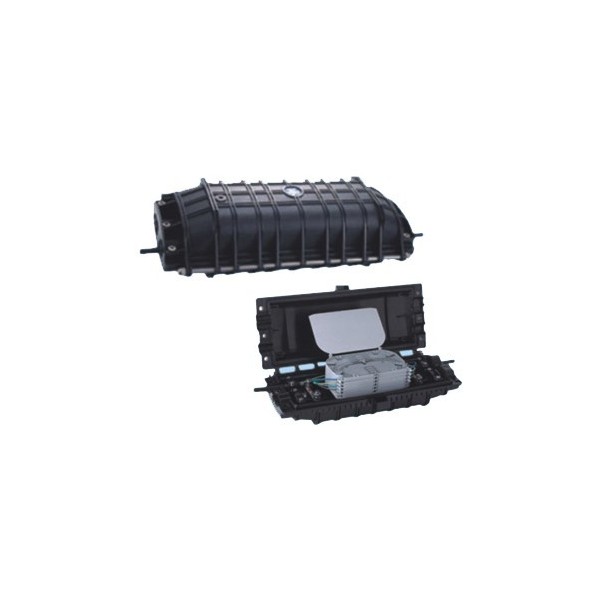

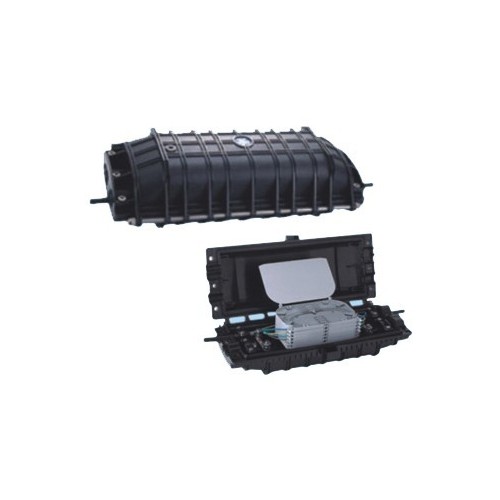

Fiber Joint Closure LF04

Fiber Joint Closure LF04

Applications:
Used for communication, network system, cable TV of CATV, fiber-optic cable by network

Features:
 Material: high quality ABS.
Purpose: aerial, direct-burying, wall-mounting, pipeline laying way
Module design of splice tray and fixing bracket could simplify the installation.
Environmental temperature: -40℃ to +85℃
Atmospheric pressure: 70-106Kpa

Specifications：
Dimension: 392 x 197 x 123 mm
Weight: 2.7kg
Structure: split type (quick installation)
Maximum capacity: 120 cores
Number of inlet/outlet ports: 6 pieces
Optical fiber winding radius: ≥40mm
Extra loss of fiber tray:≤0.01dB
