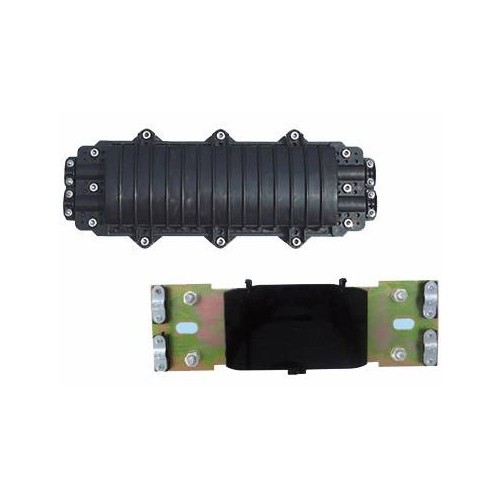

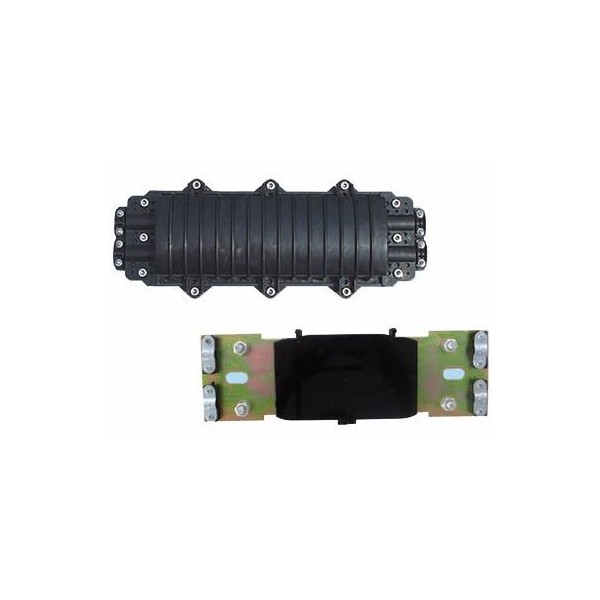

Fiber Joint Closure LF03

 Fiber Joint Closure LF03

Applications:

 Used for communication,

 network system,

cable TV of CATV,

fiber-optic cable by network



Features:

Material: high quality ABS.

Purpose: aerial, direct-burying, wall-mounting, pipeline laying way Module design of splice tray and fixing bracket could simplify the installation.

Environmental temperature: -40Cto +85C

Atmospheric pressure: 70-106Kpa



Specifications：

Dimension: 460 x 200 x 110 mm

Weight: 2.6kg

Structure: split type (quick installation)

Maximum capacity: 120 cores

Number of inlet/outlet ports: 4 pieces

Optical fiber winding radius: ≥40mm

Extra loss of fiber tray:≤0.01dB
