Armored FO Cable For Fiber Network

1.Armored FO cable for Fiber Network

2.Fibers protects by spiral metal tube/radent cable

3.Colors Optional.

4.MPO/MTP,PM Fiber,PatchCord,Longlength indoor outdoor availble

Inquiry



Armored FO Cable For Fiber Network

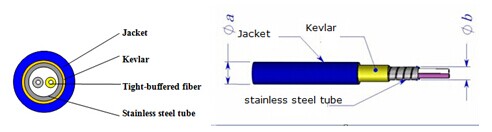

Structure for 2 core Trunk Armored FO cable



What is Armored FO Cable

1.Armored FO Cable,fibers were protectd by spiral metal tube.can protect the fibers bite from animal bite and other bad situation.

2.With differennct OD.Ligth weigth and more flexible.

3.Not easy broken.

4.can be make to be SC LC ST FC... patchcord,MPO Trunk cable--longleng or short length. MPO breakout cable. PM patchcord.

also you can use only cables to make any patchcord you need.



Application for Armored FO Cable

1.for Fiber Network,Fiber Telephon network.

2.FTTA,FTTH,FTTX

3.Outdoor Indoor music event,Emergency situation.live.

4.security system,CATV,Broadcast

etc.





Datesheet for 3.0mm 2 core armored fiber network patchcord

Type Single Mode Single Mode Multi Mode
  (APC Polish) (UPC Polish) (PC Polish)
Fiber Count   2
 Insertion Loss 0.2dB 0.2dB  0.3dB
 MAX.  TENSILE           S.T    600        L.T     300
 Bend Radius Dyn. 60  Stn.  30
 Return Loss    ≥50 dB   ≥50 dB    NA
Durability ≥500 times  ≥500 times ≥500 times
 Operating Temperature -40℃~+85℃  -40℃~+85℃  -40℃~+85℃
 Insert-pull test 1000 times<0.5 dB  1000 times<0.5 dB  1000 times<0.5 dB
 Interchange  <0.5 dB <0.5 dB  <0.5 dB
 Cable Weight 22kg/KM
 Package PE bag /wooden drum



Armored FO Cable Color:Black,Blue,White,Yellow,Red...etc.

Armored FO Cable Outer diameter option:2.0mm,3.0mm,3.5mm.4.0mm.4.5mm.4.8mm



Other Armored FO cable /fiber network cable for your reference.


ORIGINAL MANUFACTURER PROVIDE YOU HIGH QUALITY OPTICAL FIBER CABLES_HHD

-------------------------------------------------------------------------------------------------------------------------------------------

OPTICAL FIBER CABLE      FIBER PATCH CABLES       SPCIAL ARMORED FIBER CABLE

1 Core Simplex                            FC-FC 1 Core SM                     4.2mm 12core Armored  Fiber Cable

2 Core Duplex                              LC-LC 2 Core OM3                    3.0mm  MPO Armored Fiber Cable

4 Core Optical Cable                    LC-LC 4 Core OM3                    4.8mm 2 Core Armored Fiber Cable

6 Core Optical Cable                    LC-LC 6 Core SM                       7.0mm Armored Cable without Fibers

8 Core Optical Cable                    FC-FC 12 Core SM

12 Core Optical Cable                  SC/APC 2 Core Zip type



Features for Armored FO Cable

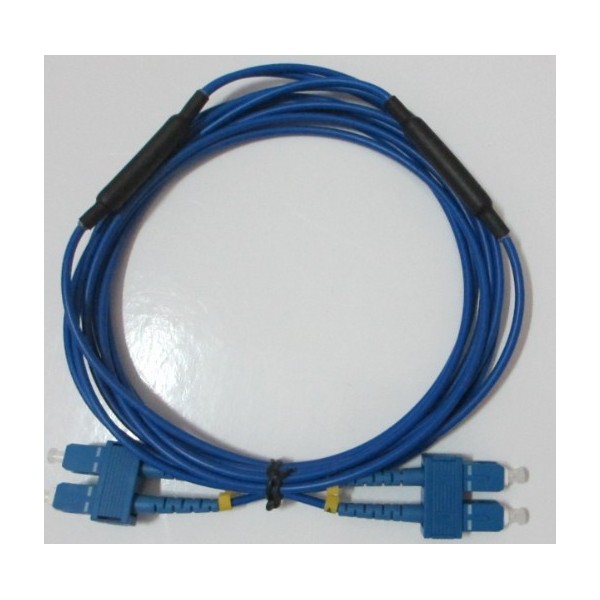

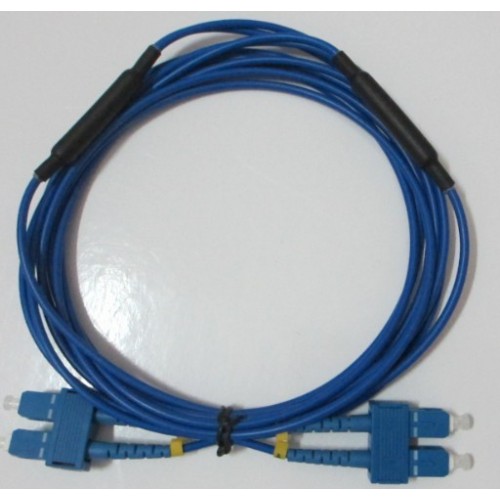

2core Armored FO Cable/SC-SC SM Patch Cord

All Armored FO Cable with good quality.
