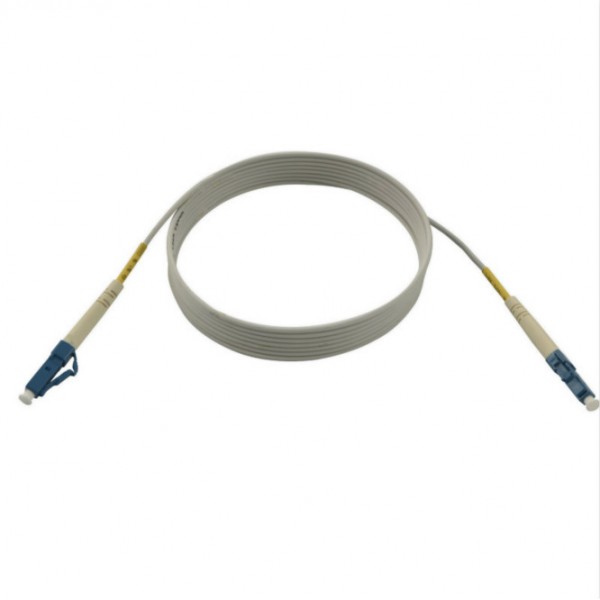

2core Singlemode 9/125 duplex 4.8mm Armored cables Fiber Optical Patch cords
FEATURES
*Good mechanical and environmental characteristics
*Soft, flexible, Stable, easy to splice
*Flame retardant characteristics meet the requirements of relevant standards
*Improve existing function based on customers’ various requirements
DETAILS
*Fiber Type: Single-mode fiber G652 G657, G655, Multimode fiber 50/125 62.5/125, OM3 *Jacket Material: LSZH, PVC, LSZH, TPU, ETFE etc
*Jacket Color: G652-Blue, G657-Gray, G655-Green, Multimode Fiber-Orange(or Gray), *Stainless Steel Tube:SUS304, SUS204, or other contracted materials requests*Other Requirements: other contracted
CABLE PARAMETERS
ITEM | CABLE OD.mm(a) | S.S.T.OD.mm(b) | T.B.O.F.OD.mm(C) |
2.0MM | Φ2.0±0.1 | Φ0.9±0.03 | Φ0.5 |
2.8MM | Φ2.8±0.1 | Φ0.9±0.03 | Φ0.5 |
3.0MM | Φ3.0±0.1 | Φ1.4±0.05 | Φ0.9 |
ITEM | CABLE OD. mm(a) |
CABLE WEIGHT | MAXIMUM TENSILE | BEND RADIUS* | L.P. | ||
S.T. | L.T. | Dyn. | Sta | N/100mm | |||
2.0MM | Φ2.0±0.1 | 6.5 | 150 | 80 | 50 | 30 | 4500 |
2.8MM | Φ2.8±0.1 | 10.5 | 300 | 150 | 60 | 30 | 3500 |
3.0MM | Φ3.0±0.1 | 11.0 | 450 | 200 | 60 | 30 | 3500 |
All the values in the table two are for reference only.
The bending radius of G657 series fiber will be less than 15mm
APPLICATIONS
*Apply to all types of optical connectors
*Apply to pigtails and patch cords
*Apply to connectors in optical communication equipment rooms, distribution frames and FTTX
*Apply to optical appliances connection
*Apply to indoor horizontal or vertical cabling, multi-medium connection, LAN
*Apply to connections of long distance, outdoor, building cabling, combination cabling of fiber optic and electronic
*Apply to high density cabling
