12core 6.0mm Emergency live tv armored cable

12core 6.0mm Emergency live tv armored cable

  Application:
*used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
*Used in communications in data center, during ODF with armored patchcord and pigtail;
*used in the open field, connections between optical equipments;
*Used in base station, for BBU to RRU.

Popular use:
*Live broadcast;
*Live program，
*Musicevent,
*Temporary network
Base station..etc.
Cabling freely

Features
*Multi-bare fibers used, to decrease the outer diameter and cable weight, also convenient for laying and splice;
*Cable using high property aramid yarn, increasing tension property, and fit for long distance use;
*Cable using spiral metal armored layer with best crush property, and cable is very flexible and easy bend;
*Cable using metal braid, increasing twist property and tension property;
*All kinds of jacket material fit for any different environments







 Remarks: (1) standard jacket color is blue; (2)PU jacket color is black only


print

*ARMORED  FO  CABLE  SMF-28e  8C  SIMPLEX

*ARMORED  FO  CABLE  MM  62.5/125  8C  SIMPLEX

*ARMORED  FO  CABLE  MM  50/125  8C  SIMPLEX

Or according to the customer request.

cable length

Standard length: 500m 1000m 2000m...

Environment protection certifications

RoHS REACH

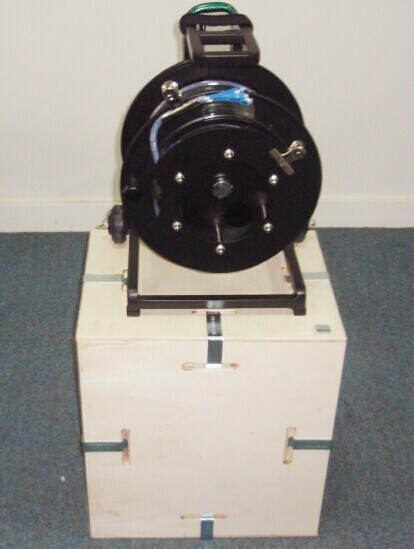

packing

(1).free packingStandard roll (wooden pallet)

(2).optional packingMetal roll, with composite material box
