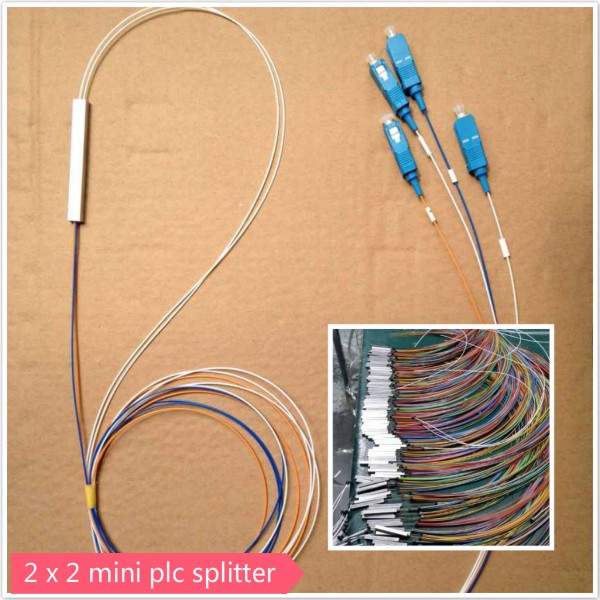

2x2 sc upc optical network splitter

1.2x2 mini type plc splitter

2.High qaulity

3.Factory price

4.Use for FTTX,FTTX,CATV...ETC

5.Fast delivery

Inquiry

2x2 sc upc optical network splitter



Features


 Uitra-end insertion loss and associated loss of polarization
    Goodspectral uniformity
    Wide wavelength bandwidth
    A wide range of working environment
    High reliability
    Small size

Applications:
   Micro plc 1x2 bare plc/micro plc
    Can be widely used for FTTX
    Passive Optical Network (OPN)
    Cable TV Network (CATV)
   Other optical signal splitter system

2x2 mini optical splitter


Parameter 　 Unit Specification
Operating Wavelength 　 nm 1260-1650
Insertion Loss （Max.） P grade db <3.9
S  grade <4.2
PDL 　 db <or=0.2
Uniformity 　 db <or=0.6
Return Loss（Min.） P grade db >or=55
S  grade >or=50
Directionality 　 db >or=55
Wavelength dependent loss 　 db <or=0.5
Temperature dependent loss
（-40Cto +85C）		 　 db <or=0.5
Fiber Length 　 m 1,1.5(+or-0.1)or other
Fiber Type 　 　 G657A customer request
Operating/Srorage Temperature 　 C  -40C-+85C
Packing Size（L*W*H） 　 mm 55X4X4
(mini bare fiber)		 60x7x4
(Mini type)		 100x80x10 (Box type)
