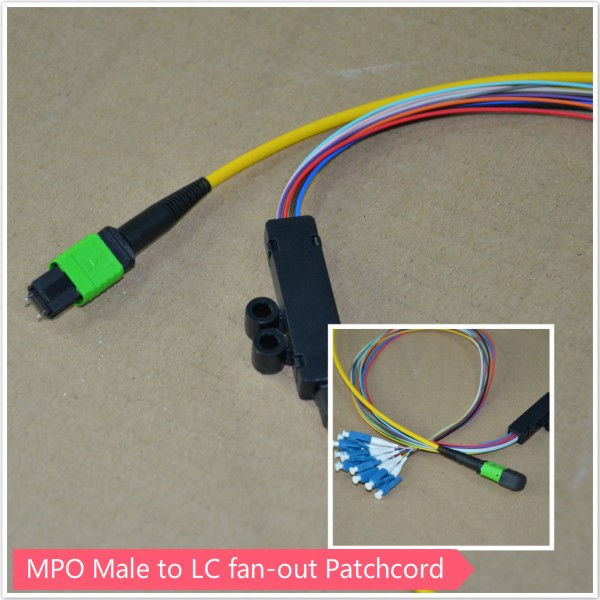

MPO to lc fan-out fiber optic patchcord
1.Low insertion loss, high return loss
2.Good compatibility
3.Standard: GR-1435-CORE compliant
4.Clean and scratch-free end face
5.High quality
6.US CONECT
1.Low insertion loss, high return loss
2.Good compatibility
3.Standard: GR-1435-CORE compliant
4.Clean and scratch-free end face
5.High quality
6.US CONECT
MPO to lc fan-out fiber optic patchcord
Description
Application:
1.Fiber optic Local Area Networks
2.CATV System
3.Telecommunication Networks
4.Access Network, Telecom, Gigabit Data Network
Feature:
*Low insertion loss, high return loss
*Good compatibility
*Standard: GR-1435-CORE compliant
*Clean and scratch-free end face
*High quality
Specification:
1.Insertion loss: ≤0.2dB
2.Return loss: ≥50dB
3.Repeatable: 0.1dB (1000)
Fiber Optic Patchcords / pigtails |
|||
Application :LAN Telecommunications, Data Cmmmunications, Component termination, CATV |
|||
Specifications |
|||
· High Repeatablity &Stability |
|||
· OD of cable:0.9mm,1.6mm,2.0mm,3.0mm… |
|||
· Cable Type:PVC,LSZH,OFNP,OFNR |
|||
· Fiber Type:9/125um 50/125,62.5/125um |
|||
Parameter |
|||
Connectors |
UPC/PC(SM) |
APC(SM) |
PC(MM) |
Reture Loss(dB) |
≥50 |
≥60 |
≥35 |
Insertion Loss(dB) |
≤0.2 |
≤0.3 |
|
Repeatability(dB) |
≤0.1(1000matings) |
||
Operating Temperature(°C) |
-40~+80 |
||
Tensile Strength(N) |
≥90(Φ3.0),≥70(Φ2.0) |
