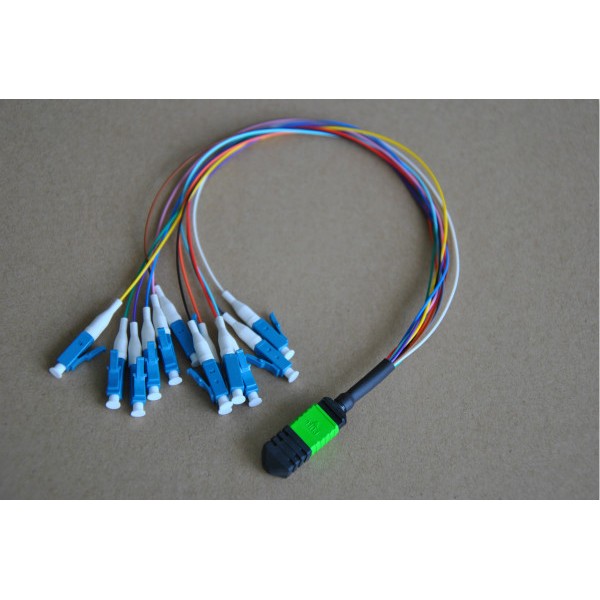

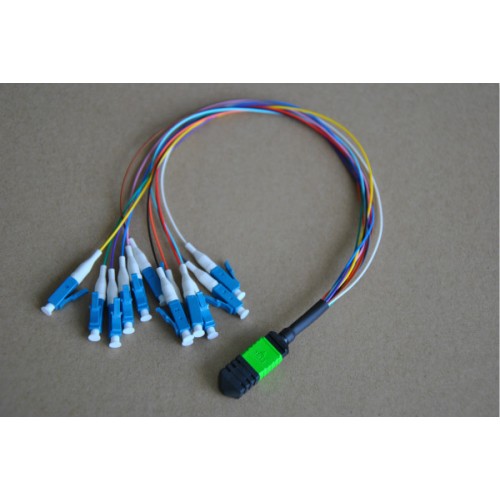

MPO LC Hybrid Trunk Cables
1.MPO LC Hybrid Trunk Cables
2.Cable Cover:PVC, LSZH, OM3, OFNR, OFNP, Plenum
3.Armored MPO LC Hybrid Trunk Cables
4.Unarmored MPO LC Hybrid Trunk Cables
5.Fast delivery
1.MPO LC Hybrid Trunk Cables
2.Cable Cover:PVC, LSZH, OM3, OFNR, OFNP, Plenum
3.Armored MPO LC Hybrid Trunk Cables
4.Unarmored MPO LC Hybrid Trunk Cables
5.Fast delivery
MPO LC Hybrid Trunk Cables
Description
1.MTP/MPO LC harness cable
2.optical fiber Patch cord
3.Optical Fiber Cable:8,12,24 etc.
4. Fiber: can choose SM 9/125 or MM: 62.5/125 ,50/125, OM1,OM2,OM3,OM4
5.Low loss patch cord
6.Temperature range: -40°~80°C
Application for MPO Hybrid Trunk Cables
1.Fiber optic Local Area Networks
2.CATV System
3.Telecommunication Networks
4.Access Network, Telecom, Gigabit Data Network
Feature for MPO Hybrid Trunk Cables
*Low insertion loss, high return loss
*Good compatibility
*Standard: GR-1435-CORE compliant
*Clean and scratch-free end face
*High quality
Specifications for MPO MTP connector
Type | Single Mode | Single Mode | Multi Mode | |||
(APC Polish) | (UPC Polish) | (PC Polish) | ||||
Fiber Count | 8,12,24 etc. | 8,12,24 etc. | 8,12,24 etc. | |||
Tensile Strength(N) | ≥90(Φ3.0),≥70(Φ2.0) | ≥90(Φ3.0),≥70(Φ2.0) | ≥90(Φ3.0),≥70(Φ2.0) | |||
Max. Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
Low Loss | Low Loss | Low Loss | ||||
≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.60dB | |
Return Loss | ≥50 dB | ≥50 dB | NA | |||
Durability | ≥500 times | ≥500 times | ≥500 times | |||
Operating Temperature | -40℃~+80℃ | -40℃~+80℃ | -40℃~+80℃ | |||
Test Wavelength | 1310nm | 1310nm | 1310nm | |||
Insert-pull test | 1000 times<0.5 dB | |||||
Interchange | <0.5 dB |
MPO Hybrid Trunk Cables:SC LC avalible
