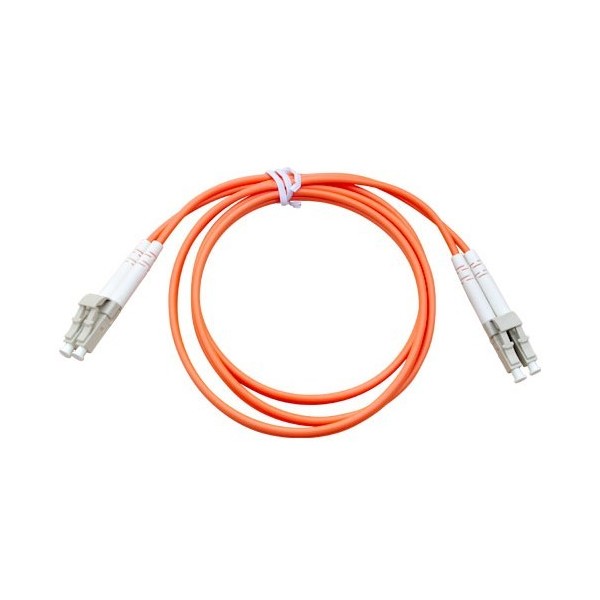

lc-lc MM 2 core armor patchcord 3mm OM2

1..Cable material: PVC or LSZH

2..Length customized, 1M, 2M...etc.

3.High precision mechanism, high wiring density

4.All parts are RoHS compliant



Inquiry

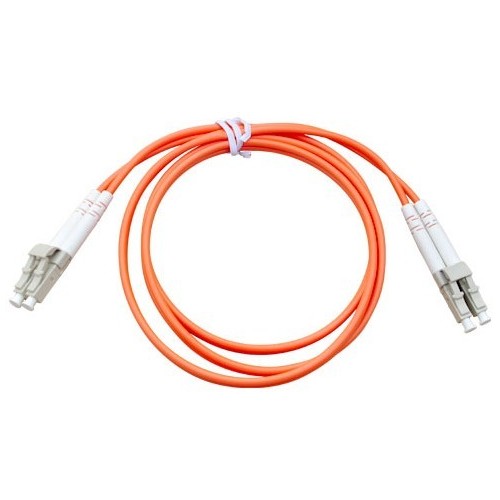

lc-lc  MM 2 core armor patchcord  3mm OM2



1.High precision mechanism, high wiring density

2.Simplex/Duplex patch cord available

3.Fiber diameter(mm): 0.9, 2.0, 3.0

4.Fiber type: 9/125um(SM), 50/125um(MM-OM2), 62.5/125um(MM-OM1), available for OM3

5.Cable material: PVC or LSZH

6.Length customized, 1M, 2M...etc.

7.All parts are RoHS compliant



Classification: LC Patchcord Series

Specifications:
*Connector LC/UPC-LC/UPC

*Singlemode Multimode
*Insertion loss<or=0.2dB(max <0.3 dB) <or=0.3dB
*Return Loss UPC> or=50dB
                     APC >or=60dB
Durability (1000 matings)  <0.2dB
Interchangeability  <0.2 dB
Operating Temperature -40C~+85C

Applications
* Lacal Area Networks, Wide Area Network, Cable TV

*Testing Instrument, Active Device Connection
*Fiber Optic Distribution Frame(ODF)
*Fiber to the Home(FTTH)
*Telecommunication Network



Ordering Information:

*Connector:FC,SC,LC,MU...others

*U:UPC, A:APC

*SM:Singlemode,  MM6:Multimode 62.5/125um

  MM5:Multimode 50/125, OM3:Multimode OM3

*SX:Simplex, DX:Dulex

*Fiber diameter:0.9,2.0,3.0

*Length :1M,2M,3M,4M...Others.

*P:PVC,L:LSZH.
