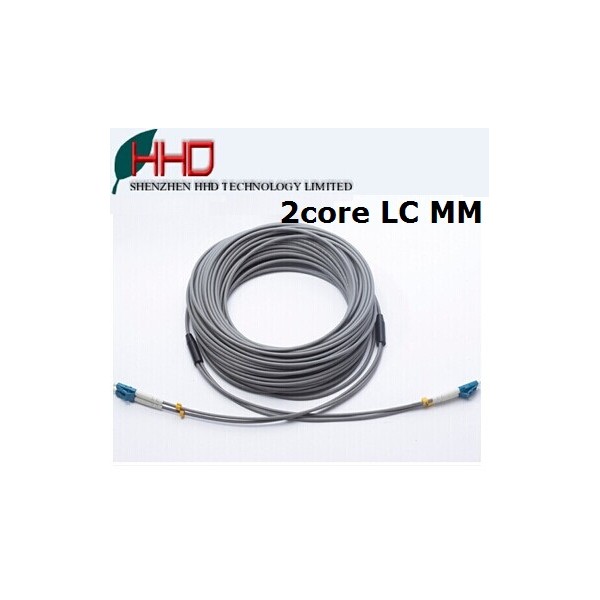

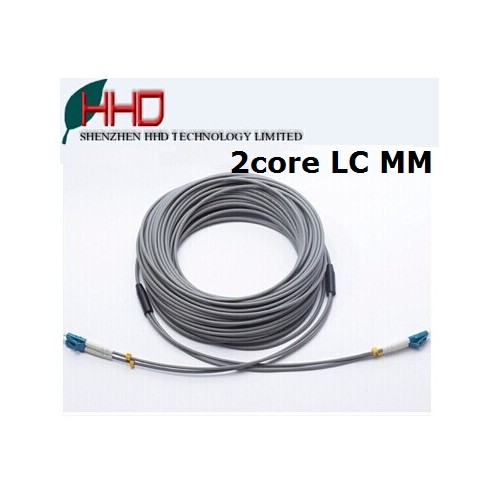

lc to lc Mulitmode fiber optic patch cord

1.ISO9001,RoHS,international standard quality

2.rodent cable/amored fiber optic cable

3.Grade A : LC fiber connector

4.easy operation





Inquiry

Multimode Fiber Optic Patch Cord ,LC to LC OM3  Armored patch Cord



Multimode Fiber Types:

OM1,OM2,OM3,OM4



Differnce between Fiber Optic Patch cord and Armord Fiber Optic Patch Cord

At begaining,Only Fiber Optic Patch Cord in the market.we can call it un armored cable.With the rapid development in science and technology,armored fiber optic patch was born.



1.Fiber Optic Patch Cord structure:

fibers-kevlar--jacket,without stainless steel tube to protect the fibers.for ftth,fttx,and others.

2.Armored fiber optic patch cord structure:

fibers-spiral stainless steel tube-kevlar-jacket.with stainless steel tube to protect the fibers from animal bites and Dragging, hitting or pressing





Application for both unarmored fiber optic patch cord and armored patch cord

Armored fiber optic patch cord not only use in all field un armored ,but still use on other special use like emergeny use,military,outdoor communiction tower,live...etc.





Characterization for armored fiber optic patch cord
1.High precision mechanism, high wiring density

2.Simplex/Duplex patch cord available

3.Fiber diameter(mm): 0.9, 2.0, 3.0

4.Fiber type: 9/125um(SM), 50/125um(MM-OM2), 62.5/125um(MM-OM1), available for OM3

5.Cable material: PVC or LSZH

6.Length customized, 1M, 2M...etc.

7.All parts are RoHS compliant.



 Features for armored fiber optic patch cord

1..Anti-Tensile,Anti-pressure,mouseproof

,2.Resistant  Improper reverse bending damage,

3.Easy Construction,

4.Saving maintenance costs;

5.Adapt to harsh environments and man-made damage.



Specifications:
*Connector LC/UPC-LC/UPC
*Singlemode Multimode
*Insertion loss<or=0.2dB(max <0.3 dB) <or=0.3dB
*Return Loss UPC> or=50dB
                     APC >or=60dB
Durability (1000 matings)  <0.2dB
Interchangeability  <0.2 dB

Operating Temperature -40C~+85C



Applications
* Lacal Area Networks, Wide Area Network, Cable TV
*Testing Instrument, Active Device Connection
*Fiber Optic Distribution Frame(ODF)
*Fiber to the Home(FTTH)

*Telecommunication Network



Ordering Information:

*Connector:FC,SC,LC,MU...others

*U:UPC, A:APC

*SM:Singlemode,  MM6:Multimode 62.5/125um

  MM5:Multimode 50/125, OM3:Multimode OM3

*SX:Simplex, DX:Dulex

*Fiber diameter:0.9,2.0,3.0

*Length :1M,2M,3M,4M...Others.

*Jacket:LSZH/PVC/PU..etc.
