1.High relaibility,strictly comply with Bellcore standard through the SGS certification authority
2.Pass the inspection of the protective performance from the Quality Supervision & Inspection Certer of Optical Communication Products(QSCO),Ministry of Imformation Industry (MII),P.R CHINA.
3.All kinds of structures
4.High precision mechanical dimensions

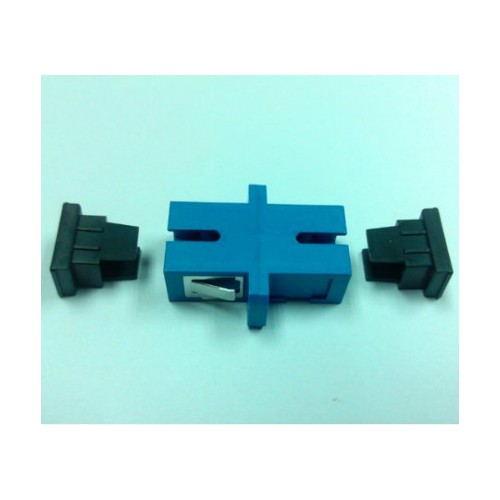

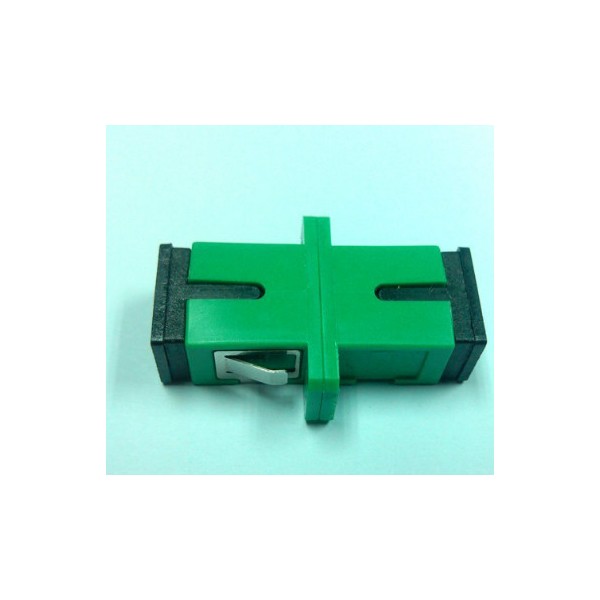

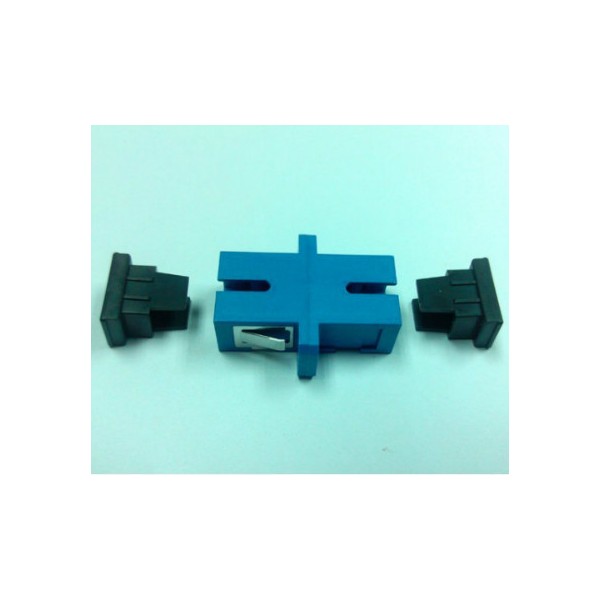

SC PC/APC Optical Adapter
Features
1.High relaibility,strictly comply with Bellcore standard through the SGS certification authority
2.Pass the inspection of the protective performance from the Quality Supervision & Inspection Certer of Optical Communication Products(QSCO),Ministry of Imformation Industry (MII),P.R CHINA.
3.All kinds of structures
4.High precision mechanical dimensions
Applications
*Telecom network
*CATV network
*Ethernet network
*Optical communication equipment
Specifications
| ITEM |
Insertion Loss |
Mechanical resistance |
Repeatability |
Operating Temperature |
|
SM/PC |
≤0.2dB |
200-600g |
＜0.2dB(1000times) |
-40℃~+80℃ |
|
SM/APC |
≤0.2dB |
200-600g |
＜0.2dB(1000times) |
-40℃~+80℃ |
|
MM/PC |
≤0.3dB |
200-600g |
＜0.3dB(1000times) |
-40℃~+80℃ |
Ordering Information
|
Item |
Mounting |
Sleeve Material |
Adapter Material |
Colour |
|
SM/PC Simplex |
2 Flange |
Zirconia Ceramic |
Plastic |
Blue |
|
SM(APC8o) Simplex |
2 Flange |
Zirconia Ceramic |
Plastic |
Green |
|
SM/PC Duplex |
2 Flange |
Zirconia Ceramic |
Plastic |
Blue |
|
SM(APC8o) Duplex |
2 Flange |
Zirconia Ceramic |
Plastic |
Green |
|
SM/PC Duplex |
2 Flange |
Zirconia Ceramic |
Plastic |
Blue |
|
SM/PC Simplex |
2 Flange |
Zirconia Ceramic |
Plastic |
Blue |
|
MM/PC Simplex |
2 Flange |
Ceramic/ phosphor bronze |
Plastic |
Beige |
|
MM/PC Duplex |
2 Flange |
Ceramic/ phosphor bronze |
Plastic |
Beige |
|
MM/PC Duplex |
2 Flange |
Ceramic/phosphor bronze |
Plastic |
Beige |
