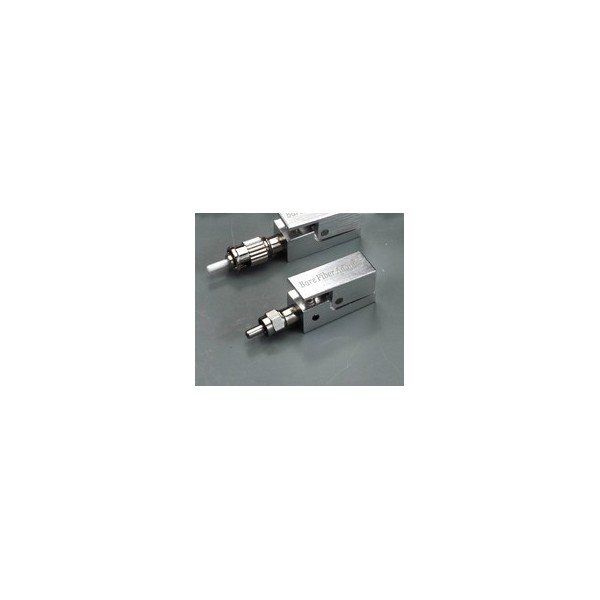

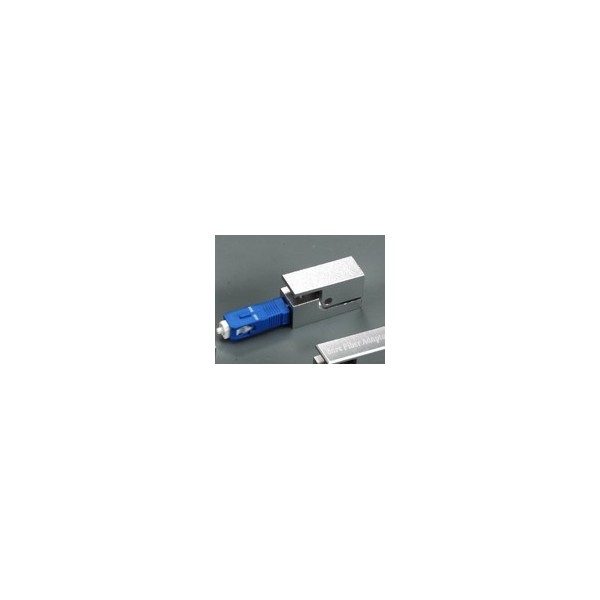

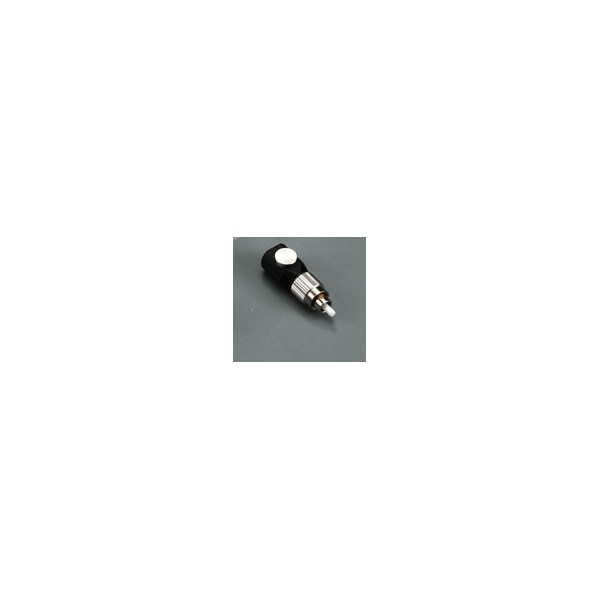

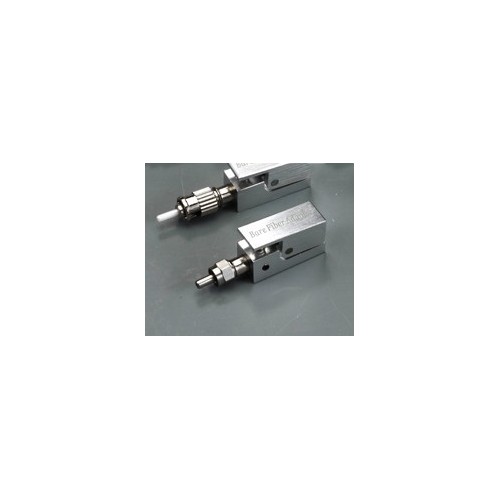

Bare Fiber Adapter(round and square type)

1.Low insertion loss
2.Excellent repeatability
3.Easy operation

Inquiry

Bare Fiber Adapter(round and square type)

Features
1.Low insertion loss
2.Excellent repeatability
3.Easy operation

Applications
*Temporarily connect to bare fiber
*Production line of optical devices
*Fiber testing in lab

Specifications

Type

FC/PC

SC/PC

ST/PC

LC/PC

Ferrule ID

125-127um

Ferrule OD

2.499mm

1.249mm

Insertion loss

<0.2dB

Repeatability

<0.2dB

Tensile force

100g

Optical fiber type

SM/MM

Plug times

>1000times

Operating temperature

-40℃ ~ +80℃
