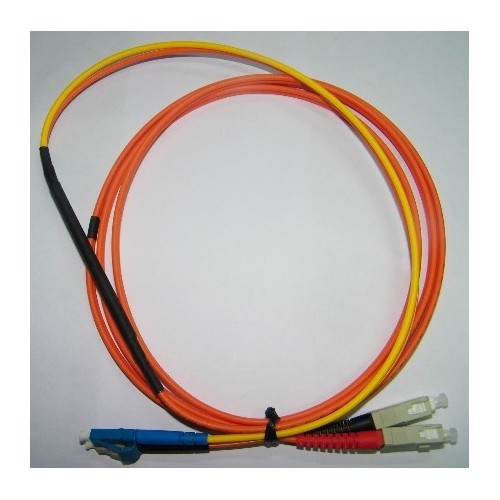

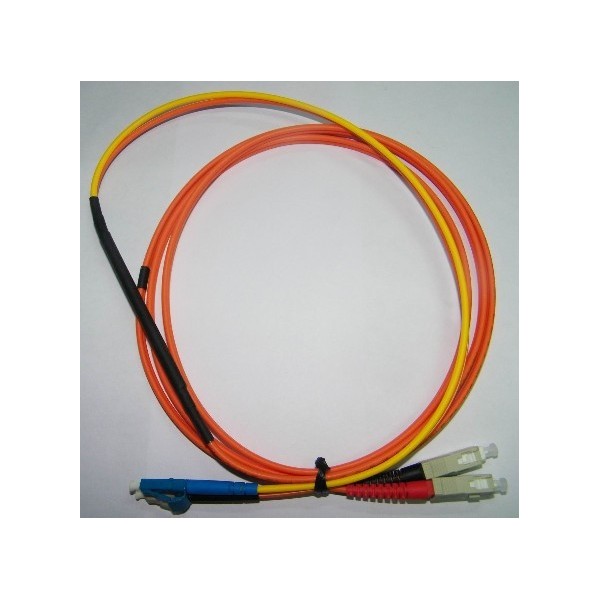

LC-SC Mode Conditioning Patchcord for Gigabit Ethernet

LC-SC Mode Conditioning Patchcord

Product description :

Mode conditioning series
The need for this patch cord is due to the single-mode launch nature of the -LX or long-wave (1300 nm) transceiver modules used for Gigabit Ethernet. These modules have to operate for both single-mode and multimode fibers. Launching a single-mode laser into the center of a multimode fiber can cause multiple signals to be generated that confuse the receiver at the other end of the fiber. These multiple signals, caused by Differential Mode Delay (DMD) effects, severely limit the cable distance lengths for operating Gigabit Ethernet. A mode conditioning patch cord eliminates these multiple signals by allowing the single-mode launch to be offset away from the center of a multimode fiber.

Application:
*The Mode Conditioning Patch Cord is designed for long wave (-LX) multimode applications of Gigabit Ethernet
*It is compliant with this IEEE 802.3z application standard

Feature:
1.Low profile offset closure
2.Permanent offset closure
3.Low loss
4.Fits existing cabling scheme
5.Easy to use
