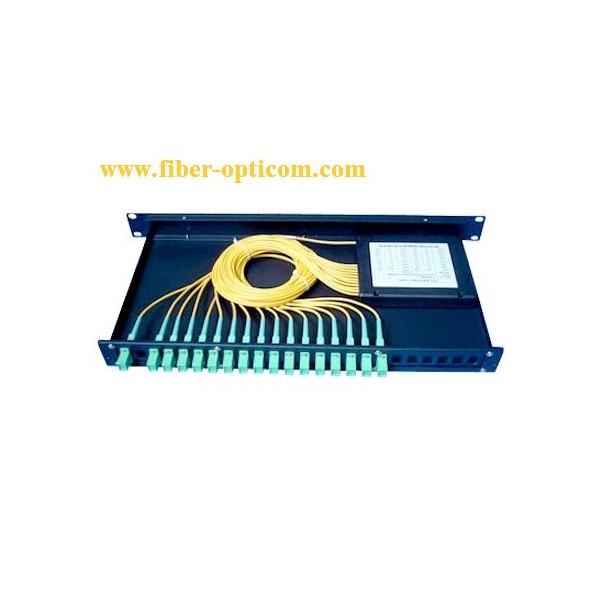

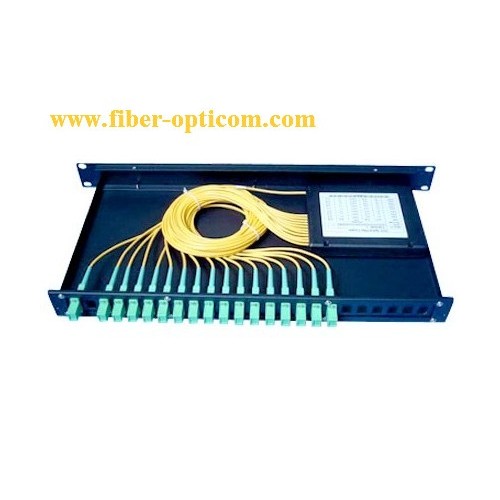

Rack-mount Fiber Optic Splitter

1.Various coupling ratio;
2.Single mode and multi mode available;
3.Low insertion loss, low PDL;
4.Environmental stable;
5.Industry standard and custom housing available;
6.Variety of connectors available;
7.1x2, 1x4 and 1x n customized couplers configuration available.

Inquiry

Rack-mount Fiber Optic Splitter

Characterization：
1.Various coupling ratio;
2.Single mode and multi mode available;
3.Low insertion loss, low PDL;
4.Environmental stable;
5.Industry standard and custom housing available;
6.Variety of connectors available;
7.1x2, 1x4 and 1x n customized couplers configuration available.


coupler,splitter
fiber optic coupler is an optical device that combines or splits power from optical fibers.
fiber optic splitter divides light from a single fiber into two or more fiber channels.

Applications:
Optical communication system
System and signal monitoring
CATV Systems & Fiber Sensors
Fiber to the home (FTTH)
Network redundancy
Laser splitting



Parameter

Configuration

N x 4
 (N=1, 2)

N x 8
(N=1, 2)

N x 16
(N=1, 2)

N x 32
(N=1, 2)

Operate Wavelength(nm)

1310/1550, or customized

Bandwidth(nm)

+or-20

Max.Excess Loss(dB)

0.2

0.3

0.4

0.5

Typ.Insertion Loss(dB)

6.2

9.3

12.4

15.5

Max.Insertion Loss(dB)

6.8

10.2

13.6

17

Uniformity(dB)

1.2

1.8

2.4

3

PDL(dB)

0.08

0.12

0.16

0.2

Thermal Stability(dB)

0.2

0.3

0.4

0.5

Directivity(dB)

>or=60

Operate
Temperature(C)

-20~+70

Lead Length(m)

1 or customized

Lead Type(mm)

3.0, 2.0, 0.9
