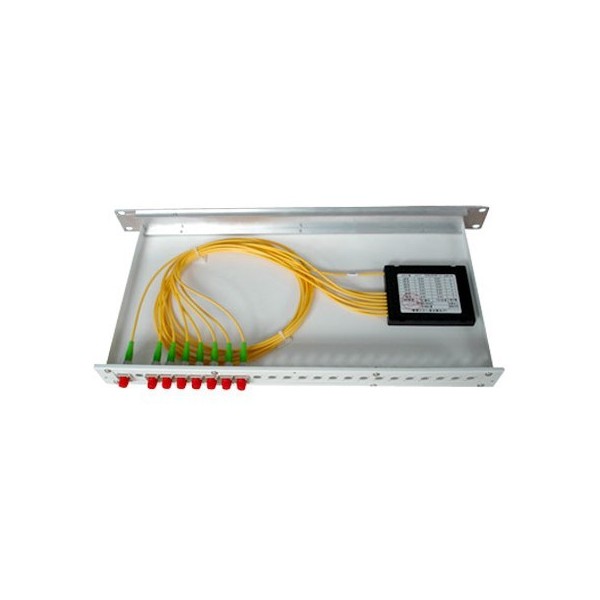

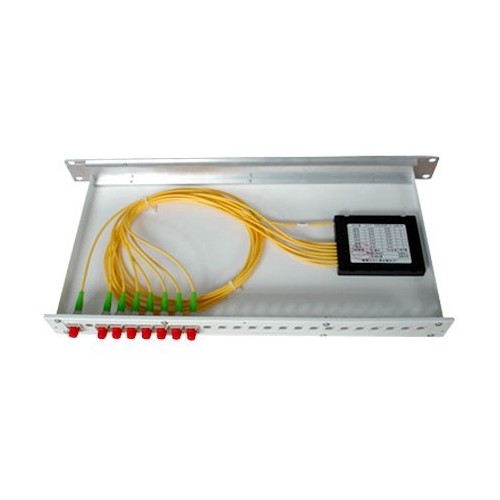

3-Rack-mount Fiber Optic Splitter
Characterization:
1.Various coupling ratio;
2.Single mode and multi mode available;
3.Low insertion loss, low PDL;
4.Environmental stable;
5.Industry standard and custom housing available;
6.Variety of connectors available;
7.1x2, 1x4 and 1x n (n=,8,16,32,64)customized couplers configuration available.
Applications:
*Optical communication system
*System and signal monitoring
*CATV Systems & Fiber Sensors
*Fiber to the home (FTTH)
*Network redundancy
*Laser splitting
Parameter |
Configuration |
|||
N x 4 |
N x 8 |
N x 16 |
N x 32 |
|
Operate Wavelength(nm) |
1310/1550, or customized |
|||
Bandwidth(nm) |
+or-20 |
|||
Max.Excess Loss(dB) |
0.2 |
0.3 |
0.4 |
0.5 |
Typ.Insertion Loss(dB) |
6.2 |
9.3 |
12.4 |
15.5 |
Max.Insertion Loss(dB) |
6.8 |
10.2 |
13.6 |
17 |
Uniformity(dB) |
1.2 |
1.8 |
2.4 |
3 |
PDL(dB) |
0.08 |
0.12 |
0.16 |
0.2 |
Thermal Stability(dB) |
0.2 |
0.3 |
0.4 |
0.5 |
Directivity(dB) |
>or=60 |
|||
Operate |
-20~+70 |
|||
Lead Length(m) |
1 or customized |
|||
Lead Type(mm) |
3.0, 2.0, 0.9 |
|||
Package Dimension |
A: 3.0,L=50 |
B: 89*19*8 |
C: 99*79*9 |
D: 140*114*18 |
