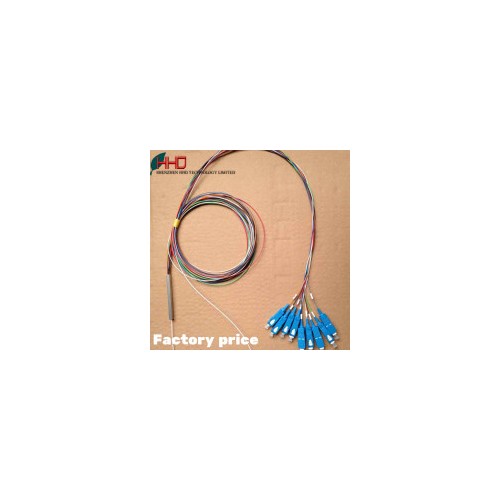

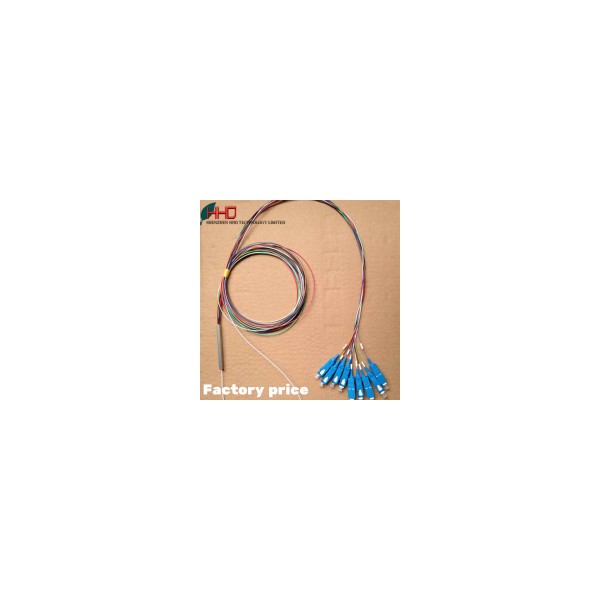

1x8 sc upc planar lightwave circuit splitter coupler

1.1x8 sc upc planar lightwave circuit splitter coupler

2.Top high quality

3.factory price

4.fast delivery

Inquiry

1x8 sc upc planar lightwave circuit splitter coupler





Features

fiber optic bare device and splitter box
Uitra-end insertion loss and associated loss of polarization
    Goodspectral uniformity
    Wide wavelength bandwidth
    A wide range of working environment
    High reliability
    Small size

Applications:
fiber optic bare device and splitter box
    Can be widely used for FTTX
    Passive Optical Network (OPN)
    Cable TV Network (CATV)
    Other optical signal splitter system

Specifications&Performances
Parameter 　 Unit Specification
Operating Wavelength 　 nm 1260-1650
Insertion Loss （Max.） P grade db <10.5
S  grade <10.7
PDL 　 db <or=0.2
Uniformity 　 db <or=1.0
Return Loss（Min.） P grade db >or=55
S  grade >or=50
Directionality 　 db >or=55
Wavelength dependent loss 　 db <or=0.5
Temperature dependent loss
（-40Cto +85C）		 　 db <or=0.5
Fiber Length 　 m 1,1.5(+or-0.1)or other
Fiber Type 　 　 G657A customer request
Operating/Srorage Temperature 　 C  -40C-+85C
Packing Size（L*W*H） 　 mm 40X4X4
(mini bare fiber)		 60x7x4
(Mini type)		 100x80x10 (Box type)
