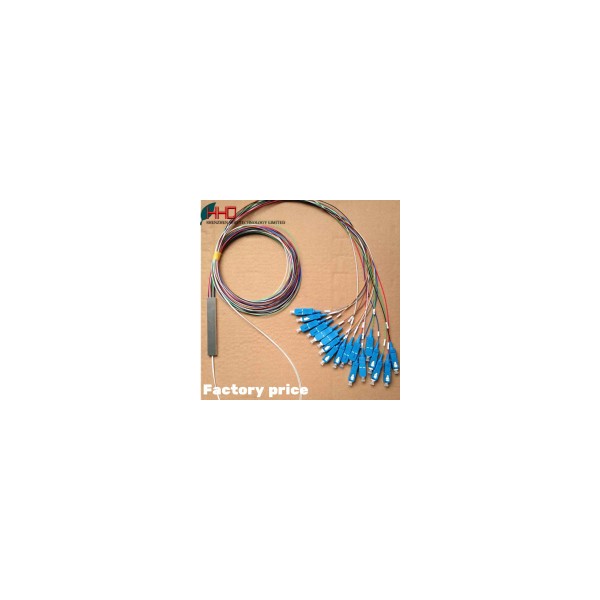

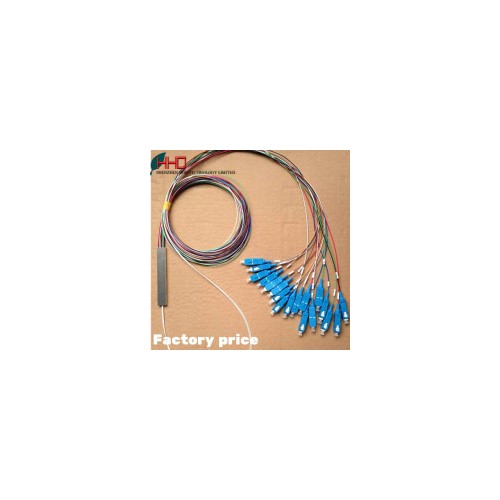

900um fiber optic cable splitter 2x16

https://www.hdd-fiber-optic.com/538-992-thickbox/2x4-ftth-optical-network-splitter-sc-upc.jpg

1.900um fiber optic cable splitter 2x16

2.Top high quality

3.factory price

4.fast delivery

More info

900um fiber optic cable splitter 2x16

Features

fiber optic bare device and splitter box

Uitra-end insertion loss and associated loss of polarization
    Goodspectral uniformity
    Wide wavelength bandwidth
    A wide range of working environment
    High reliability
    Small size

Applications:
fiber optic bare device and splitter box
    Can be widely used for FTTX
    Passive Optical Network (OPN)
    Cable TV Network (CATV)
    Other optical signal splitter system

Specifications&Performances

2 x 16 sc apc passive mini splitter

Parameter		Unit	Specification
Operating Wavelength		nm	1260-1650
Insertion Loss （Max.）	P grade	db	<14.2
	S grade		<14.5
PDL		db	<or=0.4
Uniformity		db	<or=1.8
Return Loss（Min.）	P grade	db	>or=55
	S grade		>or=50
Directionality		db	>or=55
Wavelength dependent loss		db	<or=0.5
Temperature dependent loss （-40Cto +85C）		db	<or=0.5
Fiber Length		m	1,1.5(+or-0.1)or other
Fiber Type			G657A customer request
Operating/Srorage Temperature		C	-40C-+85C
Packing Size（LWH）		mm	65x7x4 (mini bare fiber)	80x12x4 (Mini type)	120x80x18 (Box type)
