switch fibra optica D2×2B cross-connect
1.Low Insertion Loss
2.WideWavelengthRange
3.Low Crosstalk
4.High Stability, High Reliability
5.Epoxy-free on Optical Path
6.Latching and Non-latching
Categories

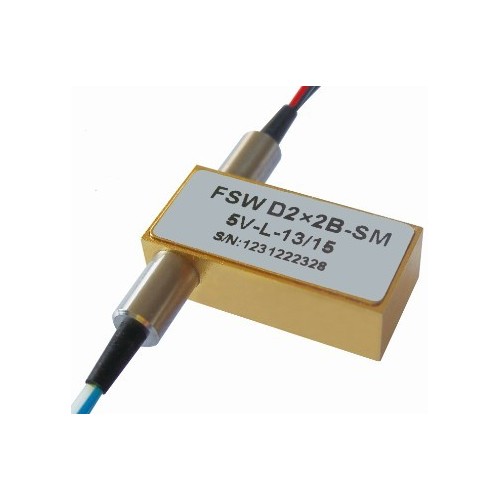

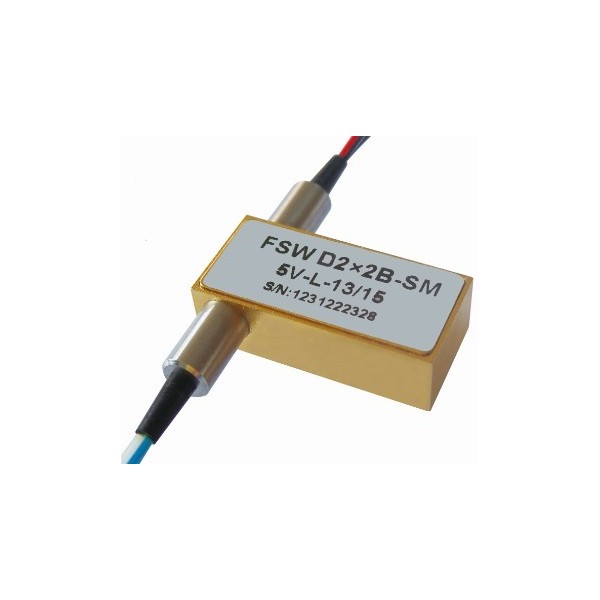

Fiber Optical Switch D2×2B Switcher
Features
Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching
Applications
R&D in Laboratory
System Monitoring
OADM
MAN (Metropolitan Area Network)
D2×2B Optical Switch, which is famous for its high performance, low insertion loss and compact. It is an ideal component for OADM，OXC，system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system
Specifications
|
Parameters |
Unit |
FSW D2×2B |
|
WavelengthRange |
nm |
1260 ~ 1650 |
|
Test Wavelength |
nm |
1310 / 1550 |
|
Insertion |
dB |
<or=1.0dB |
|
Return |
dB |
>or=55（SM） >or=30（MM） |
|
Crosstalk |
dB |
>or=55 dB |
|
PDL |
dB |
<or=0.05 |
|
WDL |
dB |
<or=0.25 |
|
Repeatability |
dB |
<or=±0.02 |
|
Operating Voltage |
V |
3.0 or 5.0 |
|
Durability |
Cycles |
>or=10 Million |
|
Switching |
ms |
<or=8 |
|
Optical |
mW |
<or=500 |
|
Operating Temperature |
℃ |
-20 ~ +70 |
|
Storage |
℃ |
-40 ~ +85 |
|
Relative |
% |
5 ~ 95 |
|
Dimension |
mm |
(L)27.0×(W)12.6×(H)8.0 ±0.2 |
|
Note: 1 Within operating temperature and SOP. 2 Excluding Connectors. |
||

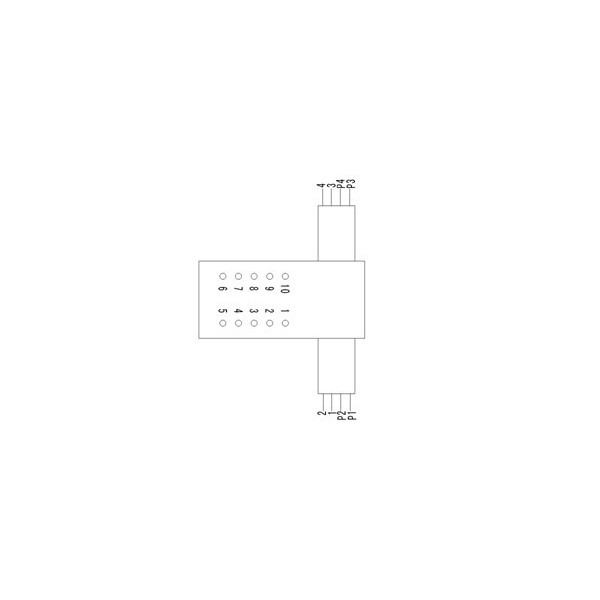

Pin Configurations
|
Optical Route |
Electric Drive |
Status Sensor |
|||||
|
D2×2B |
1 |
5 |
6 |
10 |
3－4 7－8 |
2－3 8－9 |
|
|
Latching |
P1-P4、P2-P3 1-4、2-3 |
+5V |
GND |
N/A |
N/A |
CLOSE |
OPEN |
|
P1-P3、1-3 |
N/A |
N/A |
GND |
+5V |
OPEN |
CLOSE |
|
|
Non-latching |
P1-P4、P2-P3 1-4、2-3 |
+5V |
N/A |
N/A |
GND |
CLOSE |
OPEN |
|
P1-P3、1-3 |
N/A |
N/A |
N/A |
N/A |
OPEN |
CLOSE |
|

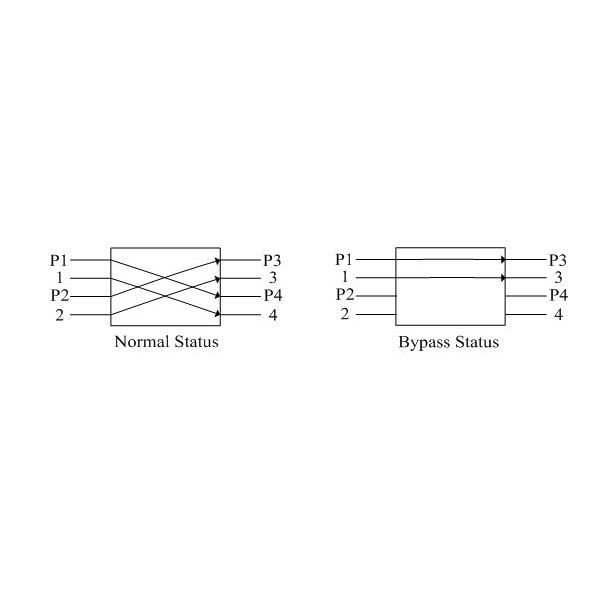

Optical Route

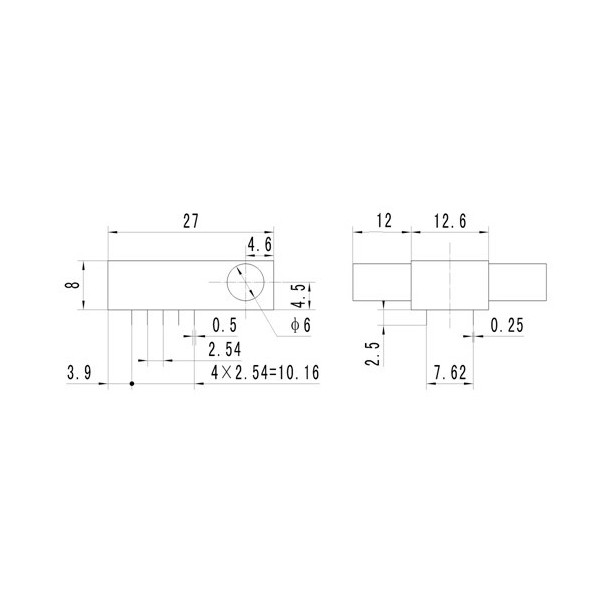

Dimension
Ordering Information: D2×2B-A-B-C-D-E-F-G
|
A |
B |
C |
D |
E |
F |
G |
|
Fiber Type |
Operating Voltage |
Switch Type |
Test Wavelength |
Tube Type |
Fiber Length (Include connector) |
Connector |
|
SM: SM, 9/125 M5:MM, M6:MM, X: Others |
3: 3V 5: 5V
|
L: Latching N: Non-latching |
850: 850nm 1310: 1310nm 1550: 1550nm 1310/1550:1310/1550nm X:Others |
25:250um 90:900um X: Others |
05:0.5m±5cm 10:1.0m±5cm 15:1.5m±5cm X: Others |
OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC STA: ST/APC LP: LC/PC LA: LC/APC X: Others |
