micro switch 2×2B switch ethernet

Parameters

Unit

FSW 2×2B

WavelengthRange

nm

1260 ~ 1650

Test Wavelength

nm

1310 / 1550

Insertion
  Loss ^{1, 2}

dB

≤0.8dB

Return
  Loss ^{1, 2}

dB

≥55（SM）    ≥30（MM）

Crosstalk
  ¹

dB

≥ 55 dB

PDL

dB

≤0.05

WDL

dB

≤0.25

Repeatability

dB

≤±0.02

Operating Voltage

V

3.0  or  5.0

Durability

Cycles

≥ 10 Million

Switching
  Time

ms

≤8

Optical
  Power

mW

≤500

Operating Temperature

℃

-20 ~ +70

Storage
  Temperature

℃

-40 ~ +85

Relative
  Humidity

%

5 ~ 95

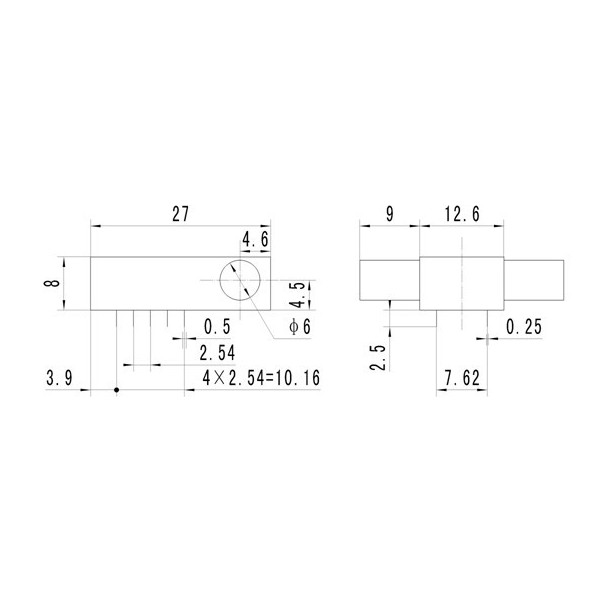

Dimension

mm

(L)27.0×(W)12.6×(H)8.0 ±0.2

Note:   ¹  Within operating temperature and SOP.

            ²  Excluding Connectors.

A

B

C

D

E

F

G

Fiber Type

Operating Voltage

Switch Type

Test Wavelength

Tube Type

Fiber Length

(Include connector)

Connector

SM: SM, 9/125

M5:MM,
  50/125

M6:MM,
  62.5/125

X: Others

3: 3V

5: 5V

L: Latching

N: Non-latching

850: 850nm

1310: 1310nm

1550: 1550nm

1310/1550:1310/1550nm

X:Others

25:250um

90:900um

X: Others

05:0.5m±5cm

10:1.0m±5cm

15:1.5m±5cm

X: Others

OO:None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

STP: ST/PC

STA: ST/APC

LP: LC/PC

LA: LC/APC

X: Others
