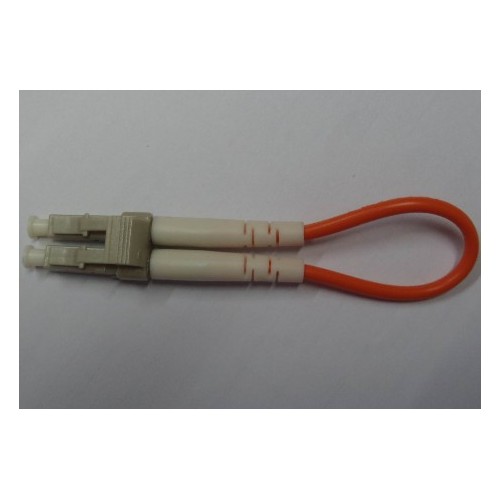

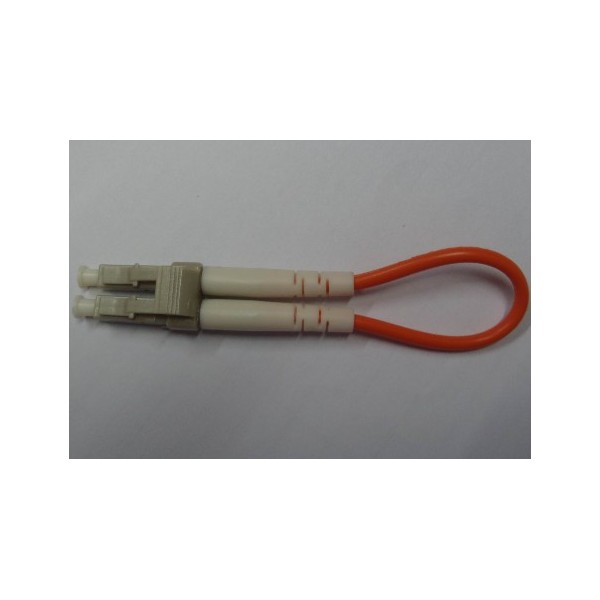

lc connector MM fiber optical Loopback

LC/UPC Multimode 50/125um Loopback

Loopback Assembly
Fiber Optic Loopback is designed to provide a media of return patch for a fiber optic signal; typically it is used for fiber optic testing applications or network restorations. For the testing applications, the loopback signal is used for diagnosing a problem.
We provide various type of loopback fiber patch cord, includes ST, FC, SC, LC, MU, E2000, MTRJ. Our loopback fiber patch cords are with compact design and they are compatible with Fast Ethernet, Fiber Channel, Gigabit Ethernet short wavelength devices. Loopback fiber patch cord can be with various jacket types and cable diameters, different terminations and length.


Application:
*Optical CATV
*Optical fiber communication system
*Optical fiber test equipment
*Active device termination
*Data processing network

Feature:
1.For equipment self-testing
2.Molded connector to secure connection
3.Operating Wavelength: 850 nm (Multimode), 1310nm (Singlemode)
4.Fully tested cable to ensure high quality and durability
5.It is compliant toTelcordia, EIA/TIAand IEC standards

Specification:
Insertion Loss: ≤0.30 dB
Return Loss: ≥50dB(SM), ≥20 dB(MM)
