sc connector single mode optical fibre pigtail

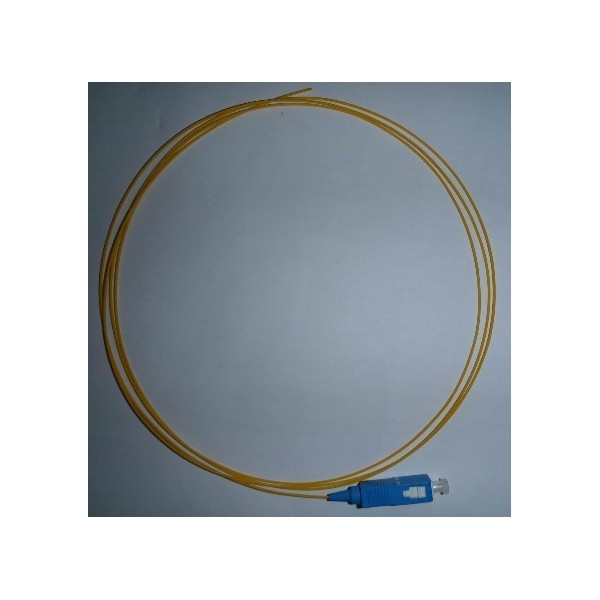

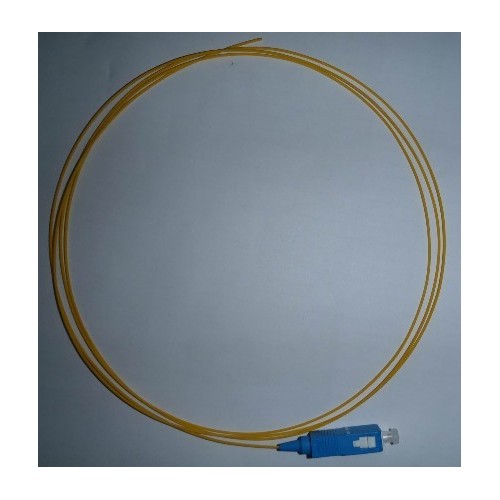

SC/UPC Singlemode 9/125um Pigtail

Product description :
Pigtail
Fiber pigtail is a piece of fiber optic cable with only one fiber optic connector on one side of the cable, there are single mode and multimode fiber optic pigtails, which can be with various types of fiber optic terminations such as SC, FC, ST, LC, MU, MT-RJ, MTP, MPO, etc.

Application:
*Optical CATV
*Optical fiber communication system
*Local Area Network
*Testing equipment

Feature:
1.Low insertion loss, high return loss
2.Good reliability and stability
3.Compliant with the standard of IEC
4.Various interfaces: FC, SC, ST, LC, MTRJ, MU, MPO etc
5.Core of cable: 4, 6, 8, 12, 24…
6.Polishing type: PC, UPC, APC

Specification:
*Insertion loss: ≤0.2dB
*Return loss: Single mode PC≥50dB Single mode APC ≥65dB Multi mode PC ≥45dB
*Repeatability: ≤0.2dB (1000 times)
*Temperature range: -40℃ - +85℃
