LC/PC/APC fibre optique loopback

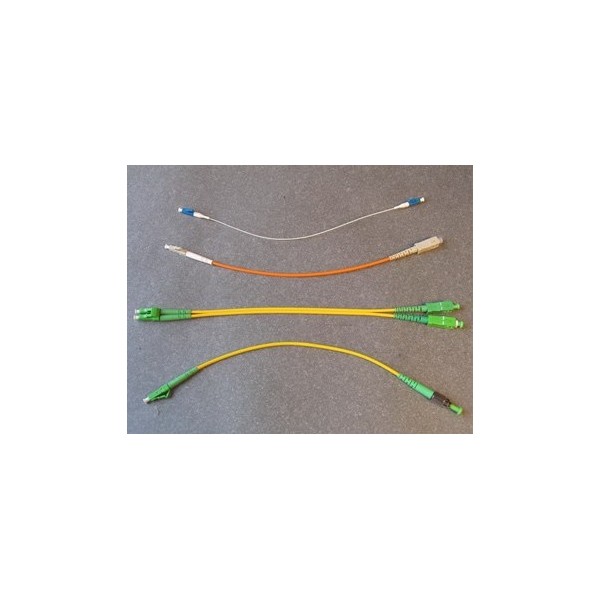

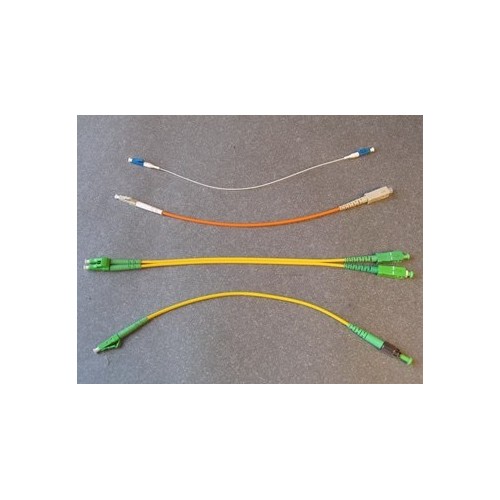

LC/PC/APC Fiber Optical Patch Cord

Inquiry



Features
*RJ-45 style housing with insert-pull coupling mechanism which easy to use in coarctation space
*Small Form connector- half size of standard connectors(SC ST FC)
*Simplex and duplex assemblies available in standard and customized connector
*PC or APC Polish
*Comply with Telcordia GR-326-CORE specification and RoHS Standard

Specifications

Item Single mode Multi mode
Fiber diameter 9/125um 62.5/125um 50/125um
Insertion loss PC<0.3dB APC<0.2dB PC<0.3 dB
Return loss PC>45 dB APC>60 dB PC>25 dB
Insert–pull test (1000 times) <0.3 dB
Interchange <0.2 dB
Operation temperature -40℃ ~ +80℃
Anti-tensile force 15kgf

Ordering Information

LC Type LC/PC/UPC/APC to LC ST SC FC MU MTRJ(Duplex)MPO (PC/UPC/APC) SM/MM Patch cords/Simplex/Duplex 0.9 2.0 3.0 mm boot
