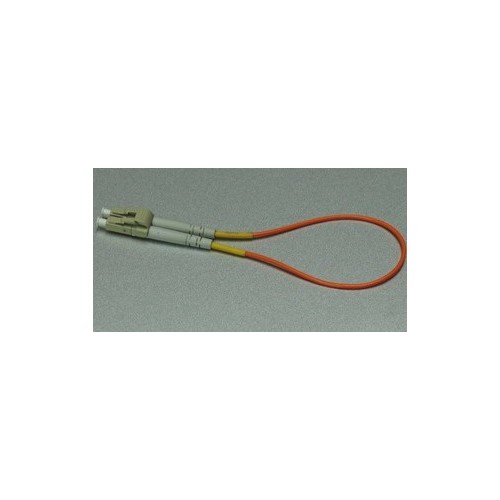

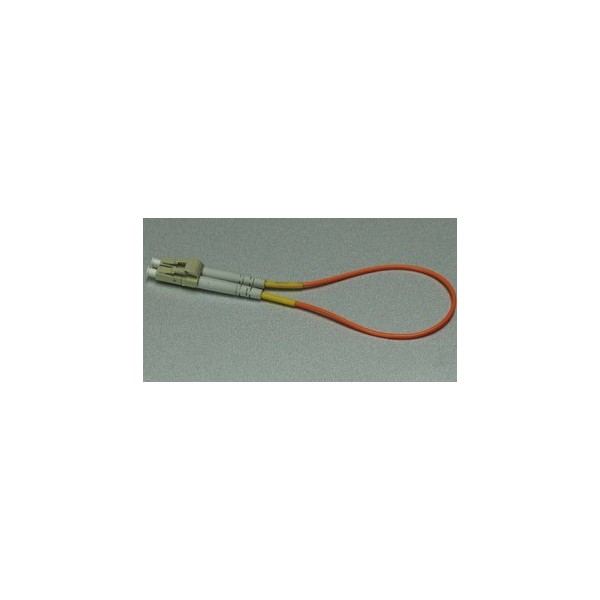

LC/PC/APC SM/MM Fiber optical loopback

*Small Form connector- half size of standard connectors(SC ST FC)
*PC or APC polish
*Comply with the request of UL94V-O and Standard of RoHS

Inquiry

LC/PC/APC SM/MM Fiber optical loopback
Features

*Small Form connector- half size of standard connectors(SC ST FC)
*PC or APC polish
*Comply with the request of UL94V-O and Standard of RoHS

Specifications

Item Single mode Multi mode
Fiber diameter 9/125um 62.5/125um 50/125um
Insertion loss PC ＜0.3dB APC ＜0.2dB PC ＜0.3 dB
Return loss PC ＞45 dB APC ＞60 dB PC ＞25 dB
Insert–pull test (1000 times) ＜0.3 dB
Interchange ＜0.2 dB
Operation temperature -40℃ ~ +80℃
Anti-tensile force 15kgf

Ordering Information

LC Type LC/PC LC/APC Single mode/Multi mode loop-back
