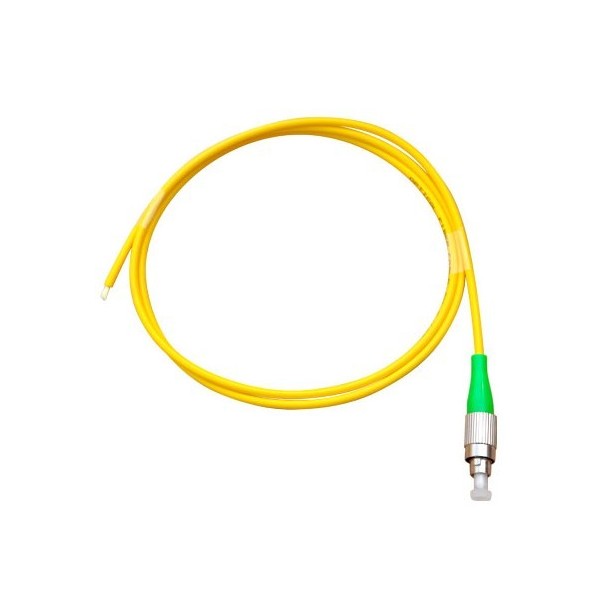

fc/apc connector Single mode optical fibre pigtail 3.0mm
*Lacal Area Networks, Wide Area Network, Cable TV
*Testing Instrument, Active Device Connection
*Fiber Optic Distribution Frame(ODF)
*Fiber to the Home(FTTH)
*Telecommunication Network
*Lacal Area Networks, Wide Area Network, Cable TV
*Testing Instrument, Active Device Connection
*Fiber Optic Distribution Frame(ODF)
*Fiber to the Home(FTTH)
*Telecommunication Network

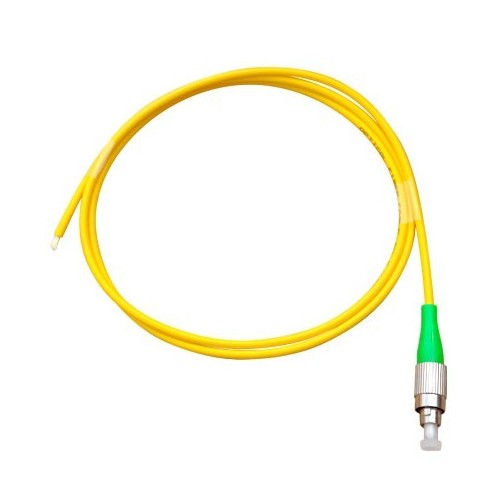

fc/apc connector Single mode optical fibre pigtail 3.0mm
Characterization:
1.High precision mechanism,high wiring density;
2.Fiber diameter(mm): Ф0.9, Ф2.0, Ф3.0;
3.Fiber type: 9/125um(SM), 50/125um(MM-OM2),62.5/125um(MM-OM1), available for OM3;
4.Cable material: PVC or LSZH;
5.Length customized, 1M, 2M...etc.
6.All parts are RoHS compliant;
7.Each pigtail is packaged in a sealed plastic bag with cleaning instructions.
Classification: FC Pigtail Series
Specifications:
Connector FC
Singlemode Multimode
Insertion loss ≦ 0.2dB(max <0.3 dB) ≦ 0.3dB
Return Loss ≥50dB(UPC)
≥60dB(APC) ≥35dB
Durability (1000 matings) <0.2dB
Interchangeability <0.2 dB
Operating Temperature -40℃~+85℃
Applications
*Lacal Area Networks, Wide Area Network, Cable TV
*Testing Instrument, Active Device Connection
*Fiber Optic Distribution Frame(ODF)
*Fiber to the Home(FTTH)
*Telecommunication Network
