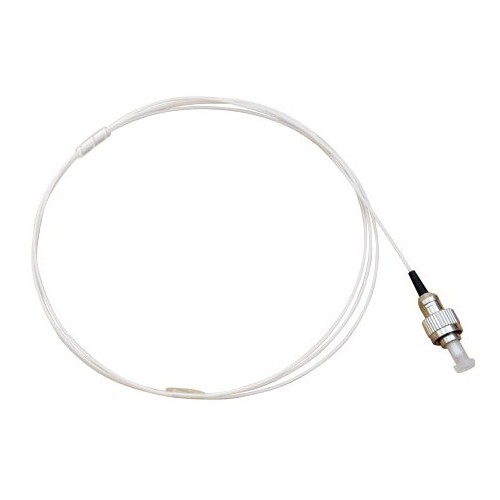

fc/pc connector single mode fibre optique pigtail tube

1.High precision mechanism, high wiring density;

2.All parts are RoHS compliant;

3.Each pigtail is packaged in a sealed plastic bag with cleaning instructions.



Inquiry

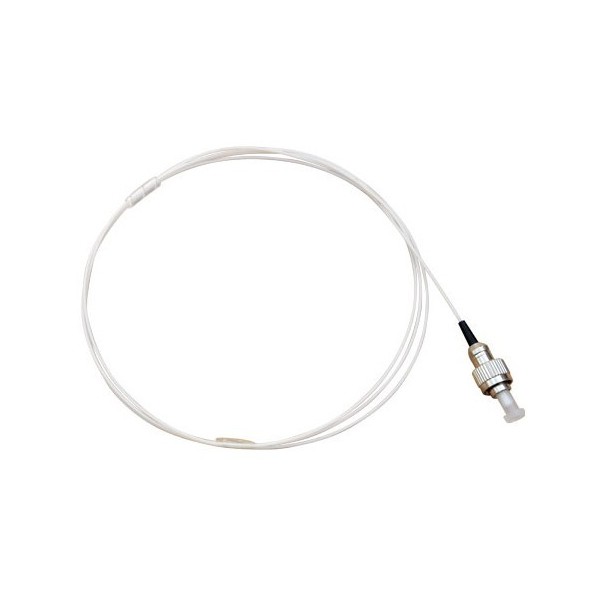

fc/pc connector  single mode fibre optique pigtail tube 0.9mm



Characterization:
1.High precision mechanism, high wiring density;

2.Fiber diameter(mm): Ф0.9, Ф2.0, Ф3.0;

3.Fiber type: 9/125um(SM), 50/125um(MM-OM2), 62.5/125um(MM-OM1), available for OM3;

4.Cable material: PVC or LSZH;

5.Length customized, 1M, 2M...etc.

6.All parts are RoHS compliant;

7.Each pigtail is packaged in a sealed plastic bag with cleaning instructions.



Classification: FC Pigtail Series

Specifications:
Connector FC
Singlemode Multimode
Insertion loss <or= 0.2dB(max <0.3 dB) <or= 0.3dB
Return Loss > or=50dB(UPC)
≥60dB(APC) > or=35dB
Durability (1000 matings) <0.2dB
Interchangeability <0.2 dB
Operating Temperature -40C~+85C

Applications
*Lacal Area Networks, Wide Area Network, Cable TV
*Testing Instrument, Active Device Connection
*Fiber Optic Distribution Frame(ODF)
*Fiber to the Home(FTTH)
*Telecommunication Network
