FTTA ODC 2DLC Fiber optic Patch Cord with 2 waterproof cap
1.Water and dust proof
2.Corrosion resistance
3.UV resistance
4.Flame retardant.
5.2-fiber meet Duplex-LC model connectors.
6.Length can be customized.
1.Water and dust proof
2.Corrosion resistance
3.UV resistance
4.Flame retardant.
5.2-fiber meet Duplex-LC model connectors.
6.Length can be customized.

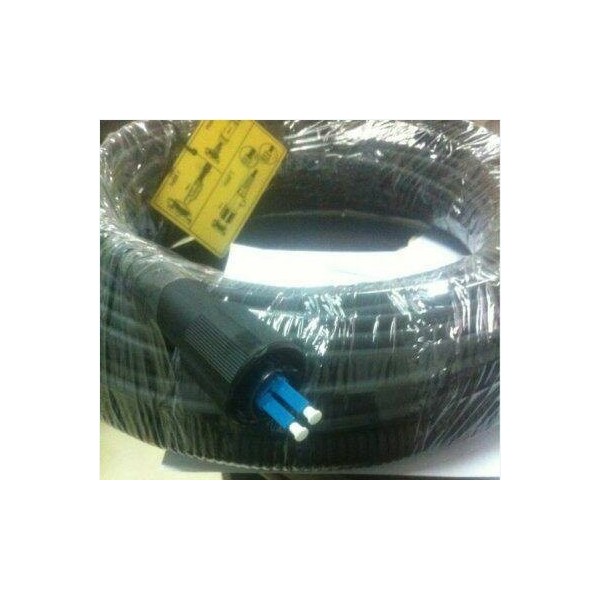

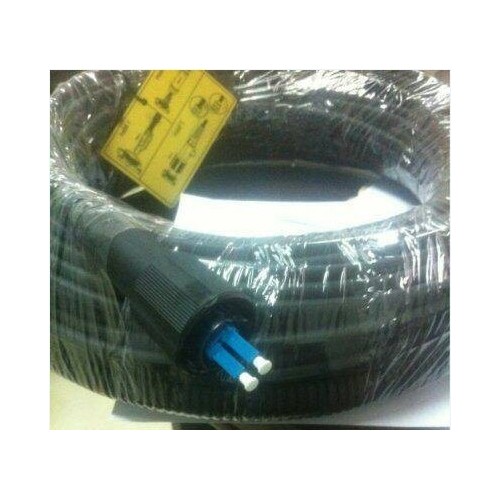

ODC DLC DLC Fiber Optic Patch Cord with 2 Waterproof Cap
Applications
With the development of optical communication technology, optical connector is used fromindoor to outdoor. Especially in current third-generation communication network, distributedbase station is applied more and more widely, which causes the ODC Fiber Cable Assembly to bethe standard of outdoor connector.
Designed for the fiber to antenna (FTTA) applications, ODC Cable Assembly can withstand harshenvironmental conditions, when being used in outdoor applications, such as TD-SCDMA,WCDMA, CDMA2000, WiMAX, etc.
At present, ODC Fiber Cable Assembly is an ideal choice for the new kind of distributed basestation.PerformanceWavelength 1310
Features
1.Spiral waterproof cap,
2.IP65 protection,
3.waterproof , dust-proof
4.Corrosion resistance,
5.UV resistance and flame retardant.
6.Easy, reliable and cost-effective installation.
7.Duplex-LC model connectors.
8.Thread structure guarantees the trusted connection.
Performance
Wavelength | 1310 / 1550 nm |
Insertion Loss (dB) | ≤ 0.3 (typical 0.2) |
Durability | ≤ 0.2 |
Return Loss (dB) | ≥ 40 |
Operation Temperature | -40 - +85C |
Tensile Strength | ≥ 300N |

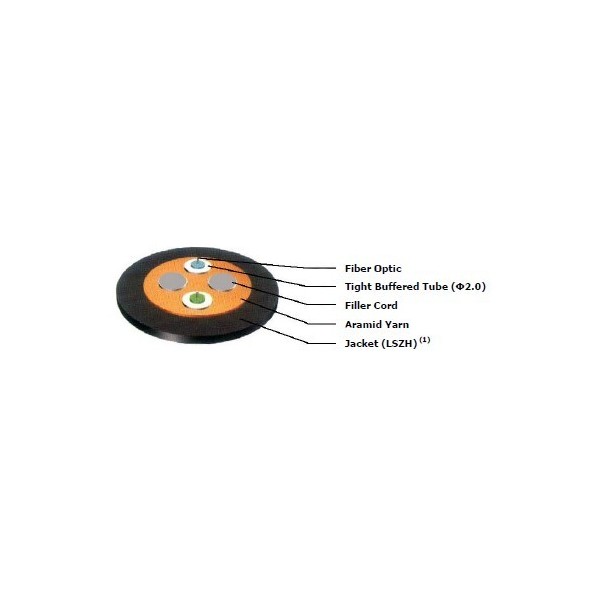

ODC Cable
Technical Data
Fiber Num |
Outer dia.(mm) |
Weight (kg/km) |
Min. Bending Radius(mm) |
Tension(N) | Crush Loading (N/100mm) |
Operation Temperature |
||
Static | Static Dynamic | Short term |
Long Term |
|||||
2 | 7 | 37 | 20D | 10D (2) | 600 | 1500 | 2000 | -40 - +80 |
(1) LSZH —— Low Smoke Zero Halogen
(2) It’s for G652.D, while for G657, it can be 5D.
