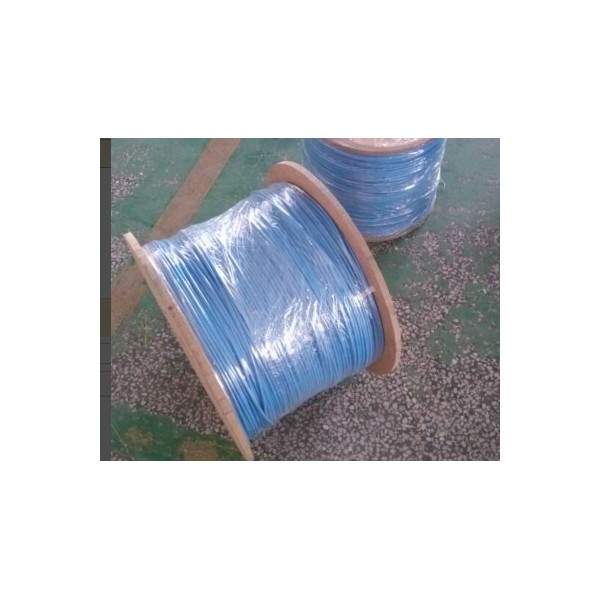

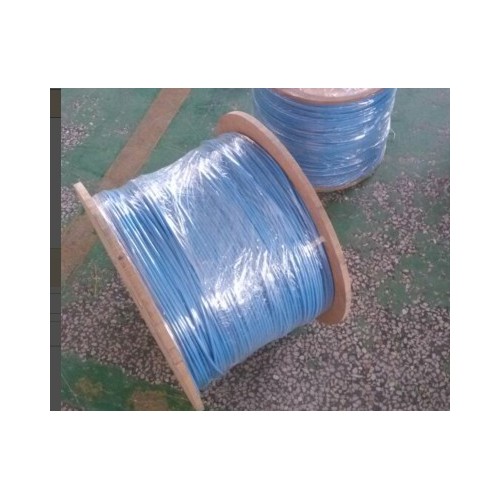

Duplex Siglemode Armored cables G657A 4.8mm
Application
.Used as connectors in optical communication equipment rooms and distribution frames;
.Used as optical apparatus connectors.
Applications
.Used in poor condition outside cabling;
.Used as pigtails and patch cords;
.meet various requirements market and clients.
Features
1.Good mechanical and environmentai characteristics;
2.soft, flexible, solid, easy to splice ,It’s especially applied to optical long-distance, field, building wiring, trunking connectors;
3.flame retardant characteristics and the meet the requirements of relevant standards;
the corresponding dimension of the whole fiber optic cable(table 1)
Fiber Count
|
Fiber type
|
Cable Diameter (mm)
|
Stainless steel tube diameter
(mm)
|
Tight-buffered fiber diameter (mm)
|
4
|
4.5-4S
|
Φ4.5±0.2
|
Φ2.4±0.02
|
Φ0.50
|
6
|
4.5-6S
|
Φ4.5±0.2
|
Φ2.6±0.02
|
Φ0.50
|
8
|
5.0-8S
|
Φ5.0±0.2
|
Φ2.8±0.02
|
Φ0.50
|
10
|
5.0-10S
|
Φ5.0±0.2
|
Φ3.0±0.02
|
Φ0.50
|
12
|
5.5-12S
|
Φ5.5±0.2
|
Φ3.2±0.02
|
Φ0.50
|
24
|
7.0-24S
|
Φ7.0±0.3
|
Φ4.3±0.03
|
Φ0.50
|
.the fiber colour is all white when the fiber account is more than 12
the corresponding parameters of the whole fiber optic cable(table 2)
Cable type
|
Cable Diameter (mm)
|
Cable weight
KG/KM
|
Tensile N
|
Bend radius (mm)*
|
Crush N/100mm
|
Short time
|
Long time
|
dynamic
|
static
|
4.5GJSJV-4S
|
Φ4.5±0.2
|
26.5
|
800
|
400
|
70
|
35
|
3000
|
4.5GJSJV-6S
|
Φ4.5±0.2
|
28.5
|
1000
|
500
|
100
|
50
|
3000
|
5.0GJSJV-8S
|
Φ5.0±0.2
|
33.0
|
1000
|
500
|
100
|
50
|
3000
|
5.0GJSJV-10S
|
Φ5.0±0.2
|
36.0
|
1000
|
500
|
120
|
60
|
3000
|
5.5GJSJV-12S
|
Φ5.5±0.2
|
39.0
|
1200
|
600
|
150
|
75
|
3000
|
7.0GJSJV-24S
|
Φ7.0±0.3
|
54.0
|
1500
|
750
|
170
|
85
|
3000
|
.all the values in the table 2 , which are for reference only .
.other requirements :Other contracted individual requirements
5.Options
.Type of fiber :Single-mode fiber G652,G657,G655,Multimode fiber 50/125,62.5/125,OM3,
.Material of jacket :PVC,LSZH,TPU,ETFE or other contracted material
.color of jacket:G652/G657-bule,G657-grey,G655-green,Multimode products -orange(or grey),or other contracted color
. other contracted material
