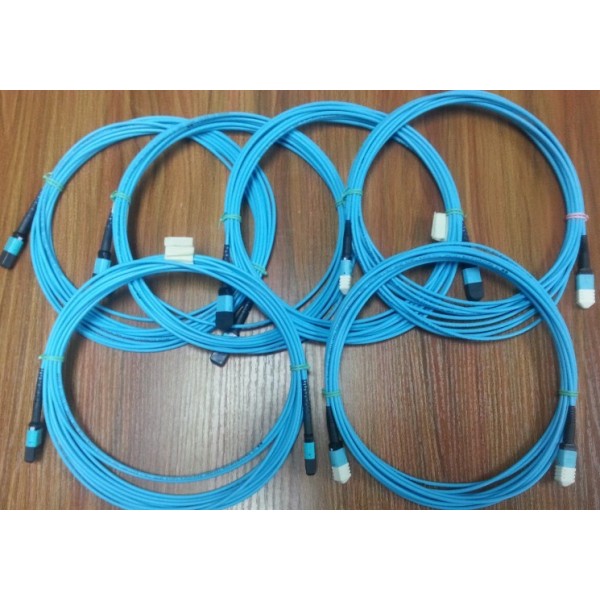

12 core Multi mode 50 /125 OM4 MPO MTP Trunk Cable

MPO Trunk  12fiber microcore cable Multimode 50 /125 OM4 Patch cord 3.0mm

The MPO / MTP patchcords are multi-fiber patchcords using the MPO / MTP connector in fiber counts of 8, 12 or 24. They are available in different cable structures and customized lengths tailored to your exact needs.

Assembly Structure Illustration:



Specifications:



Features

1.MPO / MTP connector interface patchcord

2Choices of different cable structure to cater for different installation needs

3Available in SM (9/125), MM (50 or 62.5/125), 10Gig fiber types

4.Available in 4/8/12/24 -fiber

5.Corning fiber is available for selection

6.High Performance in IL & RL

7.Designed for low loss and standard loss SM and MM applications

8.Economical solution for mass-termination of fiber

9.Ruggedized round cable, oval cable and bare ribbon options available

10.Color coded housings available to differentiate fiber type, polish type and/or connector grade

Application

*Data Centre Infrastructure

*Storage Area Network-Fiber Channel

*Emerging 40 & 100Gps Protocols

*Optical switching interframe connections

*High fiber density card edge access

*Array trunk cables

Associated Standards:

*Meets IEC Standard 61754-7& JIS C5982

*Structured cabling per TIA-568-C

*Parallel Optics

   - Optical Internetworking Forum (OIF) Compliant

   -Infiniband Compliant

 *Infiniband

   -10G Fiber Channel Compliant

  -40G and 100G IEEE 802.3

 -QSFP
