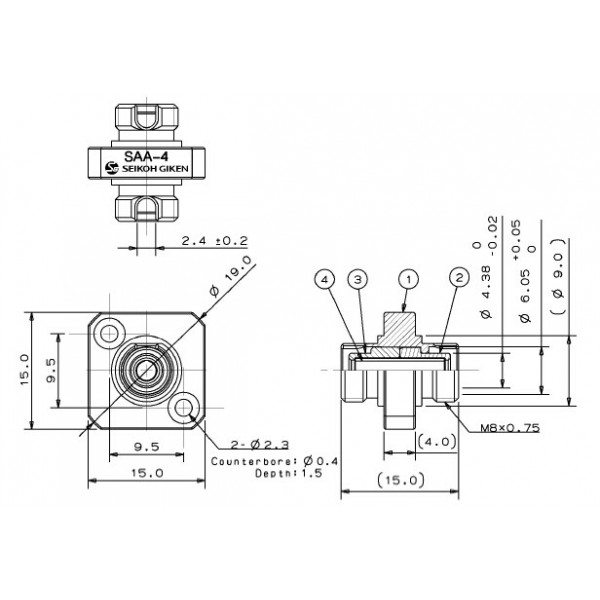

ISO 2768-m

Inquiry

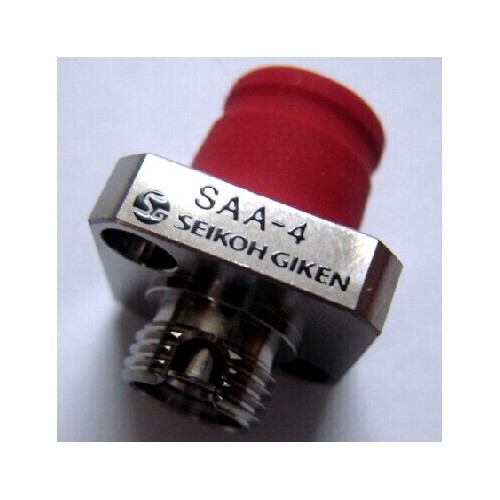

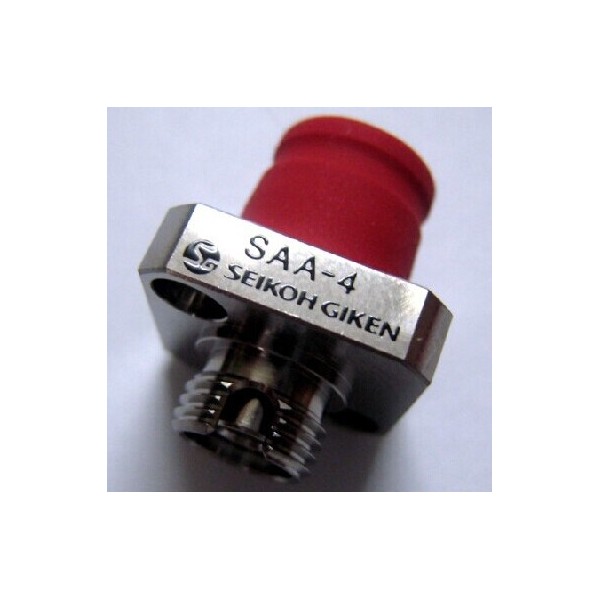

FC PC Adaptor SEIKOH GIKEN


Parts and Materials

Part Name Qty Material Notes
Adaptor Housing 1 Brass Nickel Plating
Sleeve 1 Brass Nickel Plating
Fitting Sleeve 1 Brass Nickel Plating
Slit Sleeve 1 Phosphor Bronze  -
Zirconia Ceramics  -
Cap 2 Silicone Rubber Cap, Red
POM Plastic Cap, White





General Tolerance (ISO 2768-m)

General Tolerance (ISO 2768-m)
Basic size step [mm] Permissible deviation [mm]
Over  Under
0.5 3 ±0.1
3 6 ±0.1
6 30 ±0.2
30 120 ±0.3

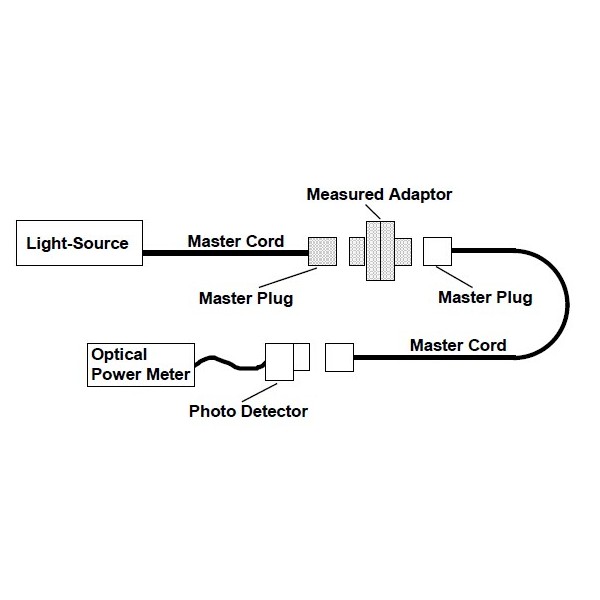

Insertion Loss and Measurement Conditions

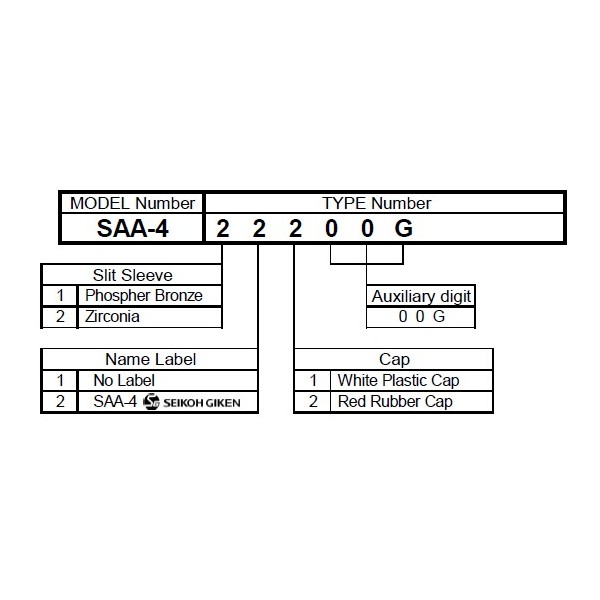

Parts Number SAA-4 ***00G
Insertion Loss 0.2 dB or less
Conditions Light Source LD
Wave Length 1.31 μm
Applicable Fiber Single mode
Master Cord Type PC, R20 mm



Appearance

There shall be no burrs or scratches that affect the product.



PACKING

The product is packed to prevent damage during shipment.



IDENTIFICATION

Identification label should indicate the part number and the lot number of the product(s)
and should be permanently attached to the packing bag.



HANDLING AND CARE
1 Conditions of Storage
Keep the product, in the packing bag, at the following conditions for its storage.
· Storage temperature: -40 to +85 degrees C
· Storage humidity: 0 to 85%RH, non-condensing


2 Precautions for Use
Contamination, oil, sweat and others debris on the inside of the slit sleeve may influence
the performance of the product. If contamination is on the inside of the slit sleeve, clean
the inside before connecting.


3 Disposal
When discarding this product, please follow the regulations of your own country.
