LC PC Simplex Adaptor seikoh giken

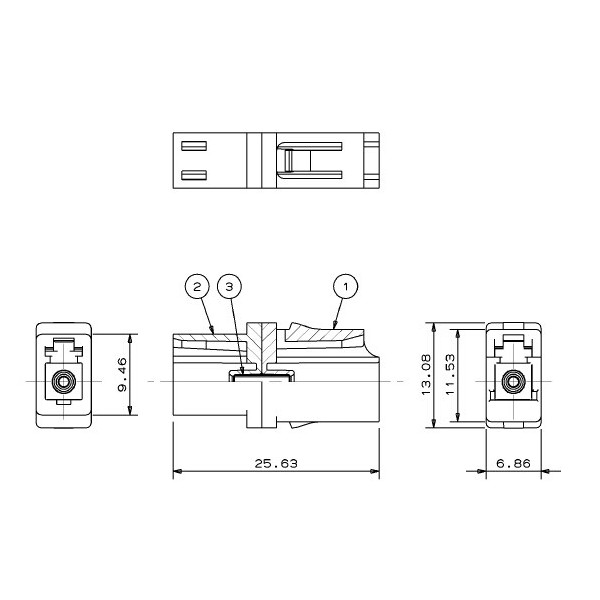

Parts and Materials
| Part Name | Qty | Material | Notes |
| Part Name | 1 | PEI | Blue, Flammability UL94 V-0 |
| Housing B | 1 | PEI | Blue, Flammability UL94 V-0 |
| Slit Sleeve | 1 | Zirconia Ceramics | |
| Cap | 2 | PP | White, Flammability UL94 V-0 |
General Tolerance (ISO 2768-m)
| General Tolerance (ISO 2768-m) | ||
| Basic size step [mm] | Permissible deviation [mm] | |
| Over | Under | |
| 0.5 | 3 | ±0.1 |
| 3 | 6 | ±0.1 |
| 6 | 30 | ±0.2 |
| 30 | 120 | ±0.3 |

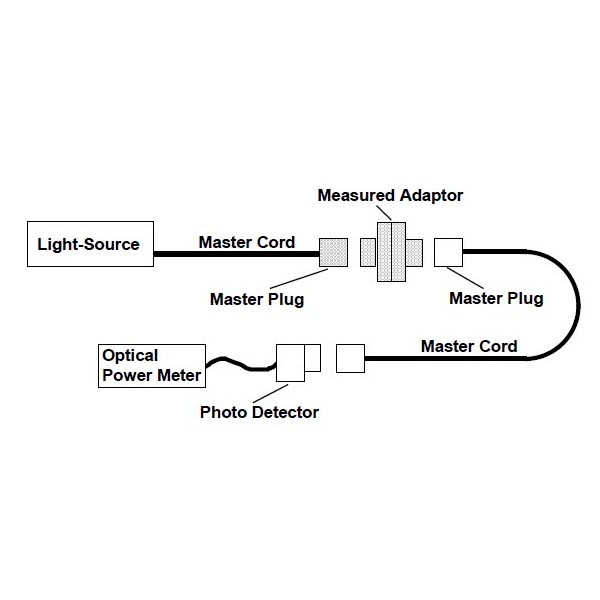

Insertion Loss and Measurement Conditions

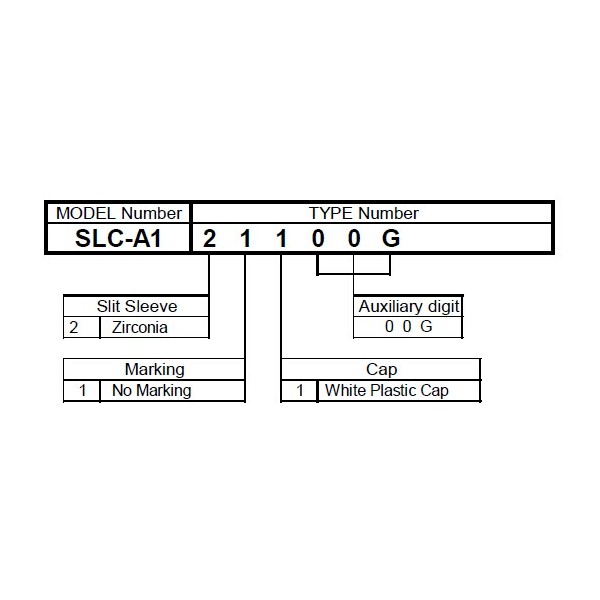

| Parts Number | SLC-A1 21100G | |
| Insertion Loss | 0.2 dB or less | |
| Conditions | Light Source | LD |
| Wave Length | 1.31 μm | |
| Applicable Fiber | Single mode | |
| Master Cord Type | PC, R20 mm | |
Appearance
There shall be no burrs or scratches that affect the product.
PACKING
The product is packed to prevent damage during shipment.
IDENTIFICATION
Identification label should indicate the part number and the lot number of the product(s)
and should be permanently attached to the packing bag.
HANDLING AND CARE
1 Conditions of Storage
Keep the product, in the packing bag, at the following conditions for its storage.
· Storage temperature: -40 to +85 degrees C
· Storage humidity: 0 to 85%RH, non-condensing
2 Precautions for Use
Contamination, oil, sweat and others debris on the inside of the slit sleeve may influence
the performance of the product. If contamination is on the inside of the slit sleeve, clean
the inside before connecting.
3 Disposal
When discarding this product, please follow the regulations of your own country.
