camera fiber cable

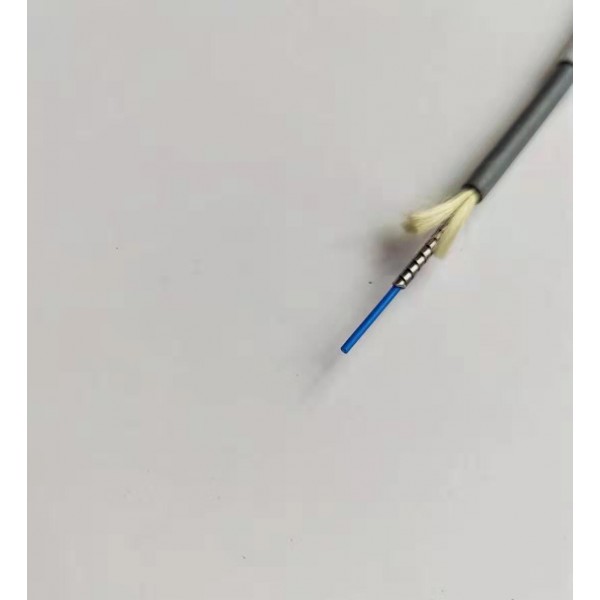

Security Camera Fiber Cable

1.Single core

2.sprial armored metal tube fiber cable

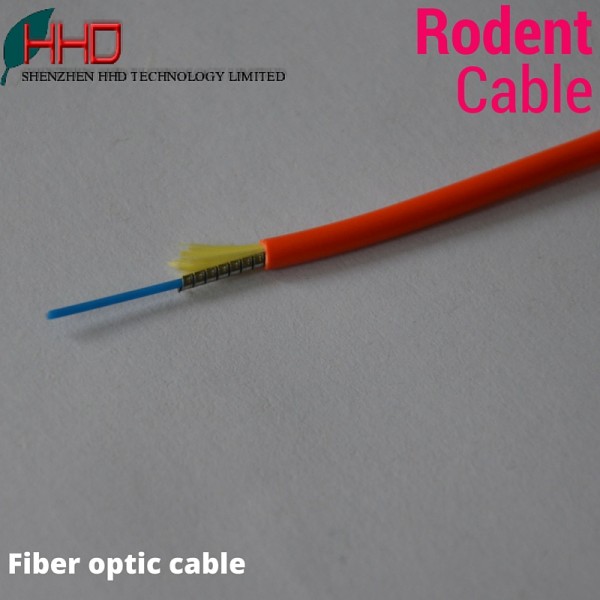

3.Rodent cable

4.ligth weigth

5.high tensile strength

6.soft,flexible,stable





Inquiry

Security Camera Fiber Cable

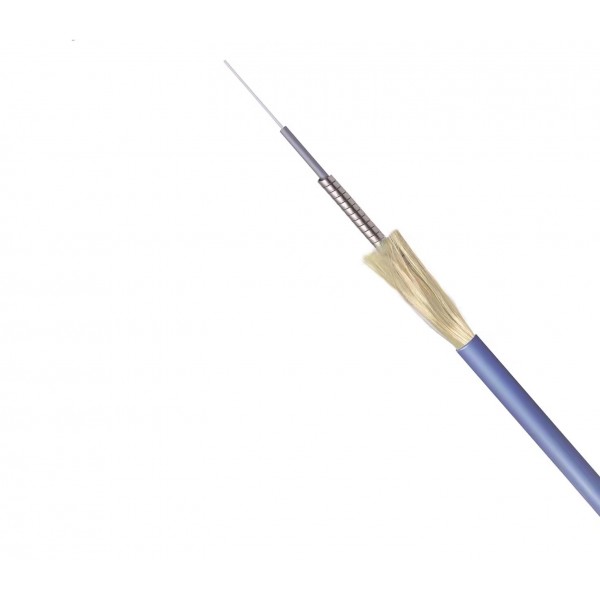

 What is Armored camera fiber cable

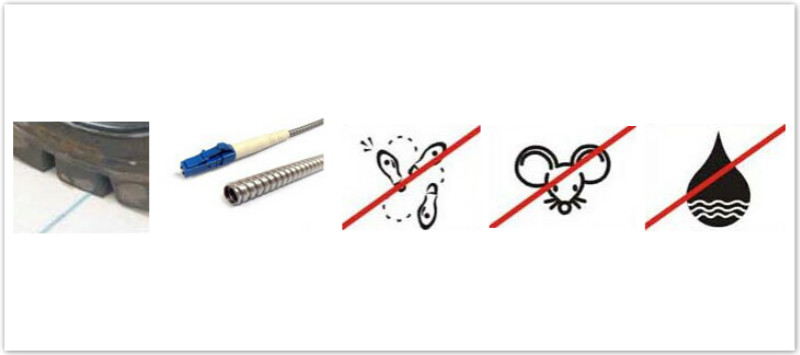

1.Armored FO Cable,fibers were protectd by spiral metal tube.can protect the fibers bite from animal bite and other bad situation.

2.With differennct OD.Ligth weigth and more flexible.

3.Not easy broken.

4.can be make to be SC LC ST FC... patchcord,MPO Trunk cable--longleng or short length. MPO breakout cable. PM patchcord.

also you can use only cables to make any patchcord you need.



Armored fiber Cable for Security Camera


Application for Armored Fiber Cable

1.for Fiber Network,Fiber Telephon network.

2.FTTA,FTTH,FTTX

3.Outdoor Indoor music event,Emergency situation.live.

4.security system,CATV,Broadcast

5.Camera





Datesheet for sc.lc,st,fc.. 2.0mm singlecore armored fiber cable

Type Single Mode Single Mode Multi Mode
  (APC Polish) (UPC Polish) (PC Polish)
Fiber Count   1
 Insertion Loss 0.2dB 0.2dB  0.3dB
 MAX.  TENSILE           S.T    450        L.T     200
 Bend Radius Dyn. 60  Stn.  30
 Return Loss    ≥50 dB   ≥50 dB    NA
Durability ≥500 times  ≥500 times ≥500 times
 Operating Temperature -40℃~+85℃  -40℃~+85℃  -40℃~+85℃
 Insert-pull test 1000 times＜0.5 dB  1000 times＜0.5 dB  1000 times＜0.5 dB
 Interchange  ＜0.5 dB ＜0.5 dB  ＜0.5 dB
 Cable Weight 6.5kg/KM
 Package PE bag /wooden drum



ITEM CABLE OD.mm(a) S.S.T.OD.mm(b) T.B.O.F.OD.mm(C)
2.0MM Φ2.0±0.1  Φ0.9±0.03  Φ0.5
2.8MM Φ2.8±0.1  Φ0.9±0.03  Φ0.5
3.0MM Φ3.0±0.1  Φ1.4±0.05  Φ0.9



ITEM CABLE OD.
mm(a)		 CABLE WEIGHT MAXIMUM TENSILE 　 BEND RADIUS* L.P.
S.T. L.T. Dyn.  Sta N/100mm
2.0MM  Φ2.0±0.1 6.5 150 80 50 30 4500
2.8MM Φ2.8±0.1  10.5 300 150 60 30 3500
3.0MM Φ3.0±0.1 11.0 450 200 60 30 3500

Other armored fiber cable for your reference.


ORIGINAL MANUFACTURER PROVIDE YOU HIGH QUALITY OPTICAL FIBER CABLES_HHD

-------------------------------------------------------------------------------------------------------------------------------------------

OPTICAL FIBER CABLE      FIBER PATCH CABLES       SPCIAL ARMORED FIBER CABLE

1 Core Simplex                            FC-FC 1 Core SM                     4.2mm 12core Armored  Fiber Cable

2 Core Duplex                              LC-LC 2 Core OM3                    3.0mm  MPO Armored Fiber Cable

4 Core Optical Cable                    LC-LC 4 Core OM3                    4.8mm 2 Core Armored Fiber Cable

6 Core Optical Cable                    LC-LC 6 Core SM                       7.0mm Armored Cable without Fibers

8 Core Optical Cable                    FC-FC 12 Core SM

12 Core Optical Cable                  SC/APC 2 Core Zip type






 singlecore armored fiber cable

All Armore fiber cable with good quality.
