12-way 5.0mm Armoured Tactical Fibre Cable | 2/4/6/8/-Way OS2

For temporary fibre links that need mechanical protection and a compact cable diameter, HHDfiber offers armoured tactical cable in 2, 4, 6 and 8 fibre configurations (2-way, 4-way, 6-way and 8-way cable). Each version has a black, UV-resistant polyether TPU outer jacket, aramid reinforcement and stainless-steel spiral armour. The specified finished outside diameter is 5.0 ± 0.2 mm.

The cable can be supplied in cut lengths or discussed as a terminated assembly for broadcast, live event and field network applications. Tell us the equipment interfaces, required length and reel arrangement so we can check the complete build against your project specification.

12G-SDI / 4K video fibre links
For live production using 12G-SDI optical equipment, this G.657.A1 single-mode cable can provide the passive fibre link between compatible optical transmitters and receivers. LC-terminated assemblies can be specified to suit the equipment interfaces and deployment length. A 12G-SDI / 4K video link depends on the optical modules and the complete link loss budget; confirm the required fibre count, connector polish and full-length optical test results for each build. The cable itself does not convert HDMI signals to 12G-SDI.

At a glance

- Fibre count: 2, 4, 6 or 8 single-mode fibres, G.657.A1
- Finished cable diameter: 5.0 ± 0.2 mm
- Protection: stainless-steel spiral armour with aramid reinforcement
- Outer jacket: black, UV-resistant, flame-retardant polyether TPU material

- Operating temperature: −40°C to +85°C

-length:100m,150,200m,250m,300m,500m,700m,1000m

-ST-ST,LC-LC,FC-FC,SC-SC,MPO-MPO,ODVA,ODC,Expanded Beam connectors

- Supply form: cable length or made-to-order assembly, subject to connector and reel specification

UK enquiries for 12-way single-mode outdoor armored tactical fiber cable

UK broadcast and event buyers may describe a twelve-fibre cable as a 12-way single-mode cable and put the length first, for example 25 m 12-way single-mode cable. In a cable specification, 12-way means twelve individual optical fibres. If you need a terminated 12-channel fibre cable assembly, tell us the connector type and fibre-to-port mapping at each end so we can confirm the channel arrangement. The 5.0 mm construction specified on this page covers 2, 4, 6 and 8 fibres; please request the separate 12-fibre cable specification for a 12-way build.

Tactical-Grade Protection for Harsh Environments|Outdoor Networking|Industrial Environments

*Field Operations,Military & Space Missions: Reliable communication for critical operations.
*Emergency & Rapid Deployment: Quick setup for temporary events or disaster recovery.
*Harsh Industrial Environments: Oil & gas, mining, and heavy machinery.
Product Name: 2-way 4-way 6-way 8-way 12-way 5.0mm Single mode Armoured Tactical Fibre Cable
Cable Type: Stainless steel tube armored
Fiber Type: G652D/G657A1/G657A2/G655C,OM1,OM2,OM3,OM4,OM5
Storage Temperature: -40℃~+80℃
Connector Type: LC/ SC/ FC/ ST/ MU/ MTRJ/ MPO
Operating Temperature: -40℃~+80℃

Technical specification for outdoor armored tactical fiber cable

Component	Property	Unit	4 fibre	6 fibre	8 fibre	12 fibre
Tight buffered fibre	Fibre type	—	G.657.A1	G.657.A1	G.657.A1	G.657.A1
Tight buffered fibre	Diameter	mm	0.50 ± 0.05	0.50 ± 0.05	0.50 ± 0.05	0.60 ± 0.05
Spiral armour tube	Material	—	Stainless steel wire	Stainless steel wire	Stainless steel wire	Stainless steel wire
Spiral armour tube	Outer diameter	mm	2.8 ± 0.1	2.8 ± 0.1	3.0 ± 0.1	3.8 ± 0.1
Strength member	Material	—	Aramid yarn	Aramid yarn	Aramid yarn	Aramid yarn
Outer sheath	Material	—	TPU	TPU	TPU	TPU
Outer sheath	Colour	—	Black	Black	Black	Black
Finished cable	Outer diameter	mm	5.0 ± 0.2	5.0 ± 0.2	5.0 ± 0.2	6.0 ± 0.2
	Cable weight		36	36	36	56

Applications

Designed for temporary fibre runs in live production, the 5.0 mm armoured cable can be specified in the fibre count and length needed for a venue. Connector and reel arrangements are confirmed for each build.

Live sports and stadium production

Fibre routes for cameras, production positions and event signal distribution across sports venues. The required audio, video, data or timing interfaces depend on the equipment at each end.
Outside broadcast and remote production
Temporary connections between camera positions, outside broadcast trucks, portable production units and other production equipment, subject to the specified fibre interfaces and connectors.

Concerts, festivals and live events

Multi-fibre routes for live video, stage production and on-site event connectivity, configured to the signal equipment used by the production team.

Event fibre hire and repeat deployment

Cut-length cable or made-to-order reel assemblies for event suppliers who install, recover and redeploy their fibre stock. Specify the reel, connectors, breakout lengths and protective caps for the intended handling workflow.
TV production and news gathering
Portable fibre links for location production and field broadcast systems where the optical interfaces, length and cable construction have been checked for the project.

Long runs and ST-terminated assemblies

HHDfiber has previously built a 1,000 m fibre assembly with ST connectors. For a new long-run requirement, tell us the fibre count, cable construction, connector details and reel preference. We will confirm the proposed build and full-length optical testing before quoting.
Request a configuration

Send us your fibre count (2, 4, 6, 8 or 12), link length, end connectors, quantity and intended use. If you specify the build by optical channels, include the connector and breakout arrangement as well. For a cable deployed and recovered from a reel, include your reel size or handling requirement. We can then confirm a suitable construction, testing scope and quotation.

Pre-terminated Outdoor Armoured Tactical Fibre Cable

Choose the fibre count and connector arrangement

ST-terminated assemblies
ST - ST ,LC-LC 2 way singlemode outdoor armored tactical fiber cable

ST - ST,LC-LC 4 way singlemode outdoor armored tactical fiber cable

ST - ST,LC-LC 6 way singlemode outdoor armored tactical fiber cable

ST - ST,LC-LC 8 way singlemode outdoor armored tactical fiber cable

ST - ST,LC-LC  12 way singlemode outdoor armored tactical fiber cable

Why Choose HHD Armored Fiber Cable？

Crush & Rodent Proof：Stainless steel armor protects your network from heavy machinery, foot traffic, and rodent damage — reducing cable replacement cost.
Flexible & Easy to Install：Tight-buffered design with 4 individual cores. Easy to strip and terminate in tight spaces or field deployments.
Built for Outdoors：UV resistant, waterproof, and operates from -40°C to +85°C. Rated for direct burial, aerial, or duct installation.

Reliable Signal：Low attenuation and high bandwidth ensure stable data transmission for critical missions — from data centers to field operations.

Indoor & Data Center Ready

Flexible, LSZH-rated, and easy to route in raised floors, cable trays, and tight spaces. Ideal for indoor and data center deployments.

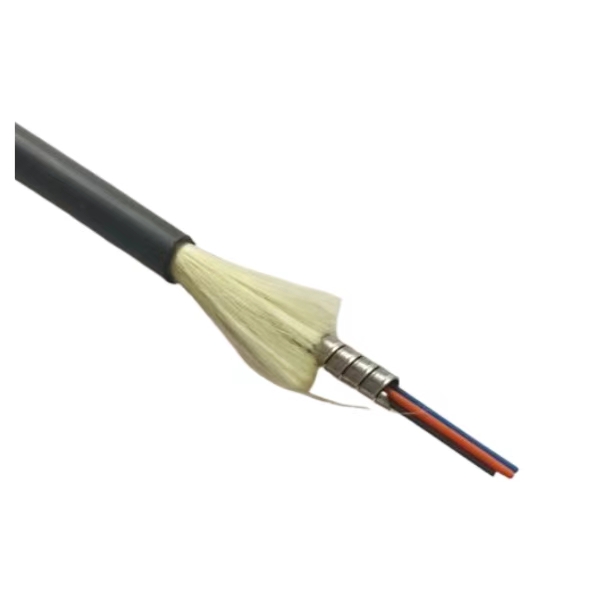

See How Our Armored Cable Is Built

How to cut and strip armored fiber optic cable

Ready to order?
Request a quote via sales@hhdfiber.com — we reply within 24 hours.

Chat with us on WhatsApp：0086 15994748729
Scan the QR code to talk to our sales team directly. We typically respond within a few hours.

Related Product for Data Center

Looking for an armored fiber cable for indoor & data center use?
Check out our 12 24 48 Core LSZH Indoor Armored Cable → [Learn More]

Need a standard 4-core outdoor armored cable without expanded beam connectors? View our 4 channel expanded beam tactical fiber optic cable
